Techniques

Side Panel Removal

Side Panel Removal

Replacement Guides

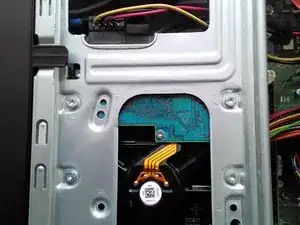

Hard Drive

Hard Drive
Wireless Card

Wireless Card

Tools

These are some common tools used to work on this device. You might not need every tool for every procedure.

Specifications

CPU support (Intel)

Intel Core i3-3xxxT (Ivy Bridge) Dual Core

Intel Core i3-3xxx (Ivy Bridge) Dual Core

Intel Core i5-3xxxT (Ivy Bridge) Dual Core

Intel Core i5-3xxxT (Ivy Bridge) Quad Core

Intel Core i5-3xxxS (Ivy Bridge) Quad Core

Intel Core i5-3xxxP (Ivy Bridge) Quad Core (onboard graphics not supported)

Intel Core i5-3xxx (Ivy Bridge) Quad Core

Intel Core i7-3xxx (Ivy Bridge) Quad Core

Intel Core i3-2xxx (Sandy Bridge) Dual Core

Intel Core i3-2xxxT (Sandy Bridge) Dual Core

Intel Core i5-2xxx (Sandy Bridge) Quad Core

Intel Core i5-2xxxP (Sandy Bridge) Quad Core

Intel Core i7-2xxx (Sandy Bridge) Quad Core

Intel Celeron G4xx (Sandy Bridge) Single Core

Intel Celeron G5xx (Sandy Bridge) Dual Core

Intel Pentium G6xx (Sandy Bridge) Dual Core

Intel Pentium G6xxT (Sandy Bridge) Dual Core

Intel Pentium G8xx (Sandy Bridge) Dual Core

Intel Pentium G16xx (Sandy Bridge) Dual Core

Intel Pentium G20xx (Ivy Bridge) Dual Core

Memory

  • Dual channel
  • DDR3 DIMM (240-pin)
  • Non-ECC (Unbuffered)
  • Supports 1GB, 2GB, 4GB and 8GB DIMM modules (4GB max for 32-bit operating systems)
  • Speed support
    • PC3-10600 (DDR3-1333)
    • PC3-12800 (DDR3-1600)

Chipset

  • Intel H61
