Tools

These are some common tools used to work on this device. You might not need every tool for every procedure.

Background

Released in August 2018, the Sony WF-1000XM3 earbuds are marketed as high-end, stylish earbuds with industry-leading noise cancellation. Although outclassed by its successor, the WF-1000XM4, the WF-1000XM3 offers hands free calls, a touch panel for on-ear controls, and digital upscaling for compressed music files.

The Sony WF-1000XM3 earbuds range between $120–$205 USD.

Identification

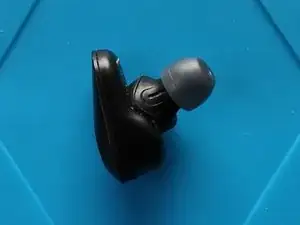

The Sony WF-1000XM3 uses its model number in its name: WF-1000XM3. You can check if your earbuds are this specific model by opening the charging case and looking at the inside of the lid's hinge; the model number should be printed there. Otherwise, you can identify these earbuds by their "bucket-shaped" charging case with the copper colored lid. The earbuds themselves are pill-shaped and have a small in the center of them, near the Sony logo.

The Sony WF-1000XM3 earbuds come in two colors: Black and Platinum Silver

Technical Specifications

  • Weight:
    • Each earbud = 8.5 g
    • NOT WATERPROOF
  • Connectivity:
    • Bluetooth® 5.0
    • Line of sight = ~30 ft (10 m)
  • Audio (Each Earbud):
    • 6 mm, dome type (CCAW Voice coil)
    • Togglable noise cancelling
    • On-ear volume controls
    • DSEE HX Digital music upscaling
  • Battery:
    • Battery charge time = ~1.5 hours
    • Battery life with continuous communication time = max 4 hour (NC ON) / max 4.5 hours (NC OFF)
    • Battery life during waiting time = max 9 hours (NC ON) / max 15 hours (NC OFF)
    • Battery life with continuous music playback = max 6 hours (NC ON) / max 8 hours (NC OFF)
    • USB-C® charging port is on the charging case
