2017 Jeep Cherokee Air Filter Replacement

Written By: Joseph Howerton
  • Comments: 0
2017 Jeep Cherokee Air Filter Replacement

Difficulty

Easy

Steps

6

Time Required

10 - 15 minutes

Introduction

Changing the air filter in your 2017 Jeep Cherokee is a straightforward maintenance task that can enhance engine efficiency and performance. This guide will lead you through each step of the process, from opening the hood to installing the new filter. Regularly replacing the air filter, especially in dusty conditions, helps maintain optimal airflow and engine health.

Ensure the engine is cool before starting to avoid any burns, and keep all tools and parts clear of the engine's electrical components for safety.

  1. oUbIC2RYchykFoLV
    oUbIC2RYchykFoLV
    CDcSgOqZWsP2qI1Z

    • Pull thehood release lever on the driver's side, under the dashboard until you hear the hood pop open slightly.

    • The hood release is typically marked with a car icon.

    • Walk to the front of the vehicle and reach under the hood to find the secondary safety latch. Slide or lift this latch to fully release the hood.

    • Carefully lift the hood.

  2. jdPTVjWCVPEVfNWF
    jdPTVjWCVPEVfNWF
    ykkfntJ1ROgQP6Vx

    • The engine air filter housing is a rectangular, black plastic box situated near the front left of the engine bay (if you are facing the engine bay).

  3. bAHSbIyw5BFAWTnv
    bAHSbIyw5BFAWTnv
    rUF3bZjgesS1BUH1
    TxegXIdvix2E331B

    • Ensure the engine has cooled down to avoid the risk of burns.

    • Use a Phillips #2 screwdriver to remove the three 8 mm screws securing the air filter housing cover.

    • There are two screws located at the front of the housing and one at the back.

    • Carefully set each screw aside in a safe spot to prevent them from rolling away or getting lost.

  4. 2ox6DNjXH1SSp5mC
    2ox6DNjXH1SSp5mC
    bfTWkobf2MKL1MPT
    GtB3B2XoZFERVBCA

    • Lift the cover off the air filter housing.

    • Observe how the old air filter sits inside the housing to ensure correct orientation when installing the new filter.

    • Remove the old air filter by lifting it straight out of the housing.

    • Inspect it for excessive dirt and debris to determine the filter's condition.

    • Handle the old filter carefully to avoid dispersing accumulated dirt.

  5. BsAZMYMBwOnD2xGx

    • Place the new filter into the housing, making sure it is properly oriented.

    • The filter should fit snugly without any gaps around the edges.

    • Double-check the orientation and fit of the new filter to ensure proper airflow.

  6. Z1D3tKDTW1v6coBq
    Z1D3tKDTW1v6coBq
    PN5FHPbWV5iKaOwh
    i5RMV4nPkIV4vWnZ

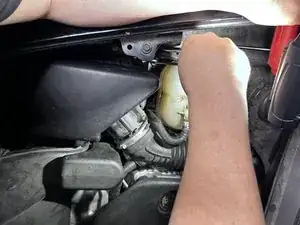

    • Place the cover back on the air filter housing.

    • Replace the three 8 mm screws and secure them with the Phillips #2 screwdriver.

    • Ensure all screws are accounted for and tightly fastened to avoid vibrations or unfiltered air entering the engine.

Conclusion

Replacing the air filter in your 2017 Jeep Cherokee is a simple and essential maintenance task that helps ensure optimal engine performance and efficiency. By following the step-by-step guide to unfasten the housing, remove the old filter, and install a new one, you can effectively maintain your vehicle's air intake system.
