Introduction
If you need to replace the bumpers on your controller you can access them with this guide. You may need to replace the bumper if it is cracked or not responding when pressed. For this guide, you will need a plastic opening tool and a TR6 Torx Security screwdriver.
You will not need to do any difficult steps, but be careful to not damage anything when you take off the top panel. Make sure the control is not plugged into a power source or operating system.
-
-
Orient the controller such that the back of the controller is facing you.
-

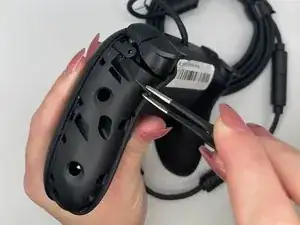

Insert an opening tool into the small opening on the back of the grip, and gently pry the grip cover away until it pops free.
-
-
-

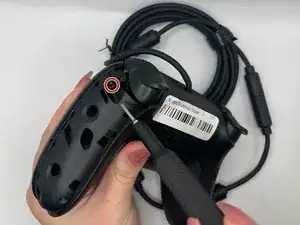

Use the TR6 Torx Security screwdriver to remove the top left 10.44 mm torx screw on the backside.
-
-
-

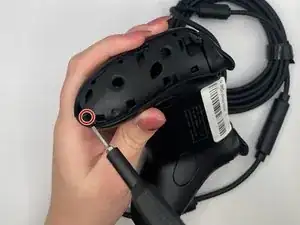

Use the TR6 Torx Security screwdriver to remove the middle left 10.44 mm Torx screw on the backside.
-
-
-
Use the TR6 Torx Security screwdriver to remove the bottom left 10.44 mm Torx screw on the backside.
-
-
-
Use the TR6 Torx Security screwdriver to remove the top right 10.44 mm Torx screw on the backside.
-
-
-
Use the TR6 Torx Security screwdriver to remove the middle right 10.44 mm Torx screw on the backside.
-
-
-

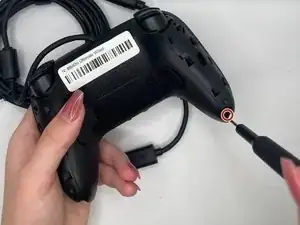

Use the TR6 Torx Security screwdriver to unscrew the bottom right 10.44 mm Torx screw on the backside.
-
-
-

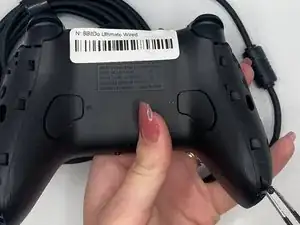

Orient the controller such that the back of the controller is facing you.
-

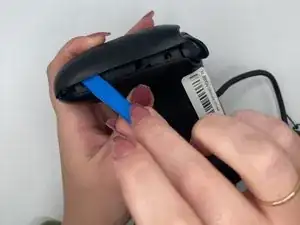

Insert an opening tool into the small opening between the front and back panels, and gently pry the back panel away to open the bottom clamps of the top panel of the controller.
-
-
-

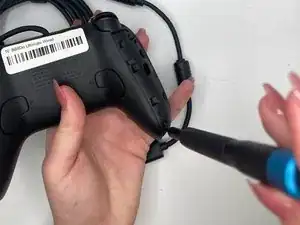

Insert an opening tool into the small opening between the front and back panel (top view) and pry away to remove the top half.
-
-
-
Orient the controller such that the back is facing you.
-

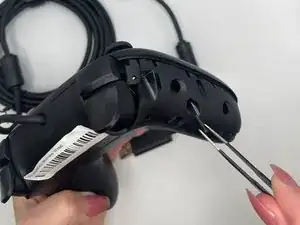

Use tweezers to help pull out the black piece on the top right side.
-
Simply pull out the loosened piece with the force of your hand.
-
To reassemble your device, follow these instructions in reverse order.
