Introduction
You can access the joystick with this guide if you need to replace it. You may need to change the joystick if you're experiencing stick-drift issues or unresponsiveness. For this guide, you will need a plastic opening tool, Phillips #0 screwdriver, TR6 Torx Security screwdriver, and ESD-safe blunt nose tweezers (optional).
This repair process is not too difficult, but be careful to not damage anything when you take off the top panel. Ensure the controller is not plugged into a power source.
-
-
Orient the controller such that the back of the controller is facing you.
-

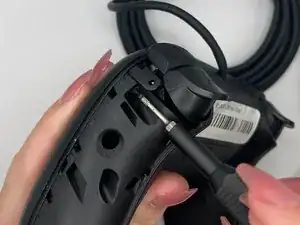

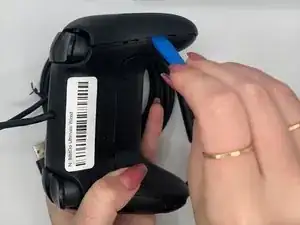

Insert an opening tool into the small opening on the back of the grip, and gently pry the grip cover away until it pops free.
-
-
-

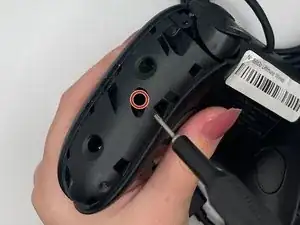

Use the TR6 Torx Security screwdriver to remove the top left 10.44 mm torx screw on the backside.
-
-
-

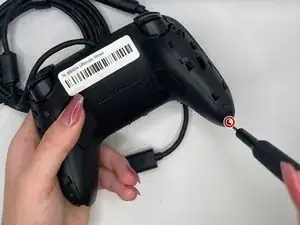

Use the TR6 Torx Security screwdriver to remove the middle left 10.44 mm Torx screw on the backside.
-
-
-

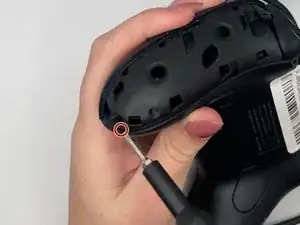

Use the TR6 Torx Security screwdriver to remove the bottom left 10.44 mm Torx screw on the backside.
-
-
-
Use the TR6 Torx Security screwdriver to remove the top right 10.44 mm Torx screw on the backside.
-
-
-
Use the TR6 Torx Security screwdriver to remove the middle right 10.44 mm Torx screw on the backside.
-
-
-

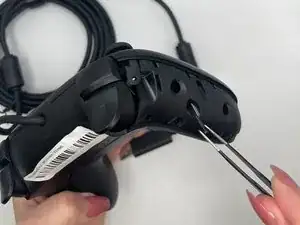

Use the TR6 Torx Security screwdriver to unscrew the bottom right 10.44 mm Torx screw on the backside.
-
-
-
Orient the controller such that the back of the controller is facing you.
-

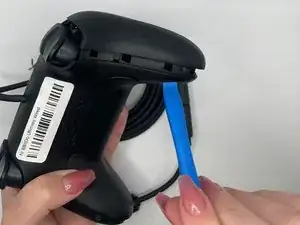

Insert an opening tool into the small opening between the front and back panels, and gently pry the back panel away to open the bottom clamps of the top panel of the controller.
-
-
-

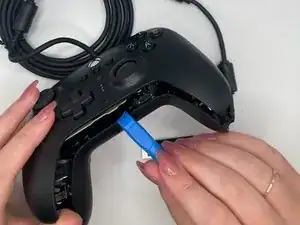

Insert an opening tool into the small opening between the front and back panel (top view) and pry away to remove the top half.
-
-
-
Orient the controller such that the front is facing you.
-
Grab the joystick cover with your fingers and pull slightly to remove it.
-
To reassemble your device, follow these instructions in reverse order.
