Introduction

If your laptop is sluggish or you get error codes related to your RAM, it may be time to replace it or upgrade. This guide will walk you through the replacement of your Random Access Memory.

  1. 2xdrWggQXZXSVE5j
    • Power down the laptop prior to beginning.

    • Turn the laptop over with the battery closest to your body.

  2. 1PWIHTLt5EYdTxBW
    1PWIHTLt5EYdTxBW
    PF4yCjWc6njbtW3p

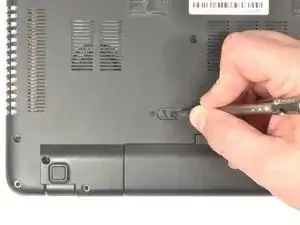

    • Insert the pointed end of a spudger into the battery release.

    • Slide the release gently all the way to the left.

    • You should hear a sound after the slide is all the way left. This lets you know the battery has disengaged.

  3. dhjDZqTsAiU5mqh3
    dhjDZqTsAiU5mqh3
    avhUfoEXWiTE61bb
    • Place your hands on each end of the battery.

    • Pull the battery towards your body to remove it.

  4. JMUDEKGReO1rVMDg
    • Using a #0 Phillips screwdriver, remove a total of eighteen identical 8mm Phillips screws and set them aside.

  5. Ba3BYepSLIfyO4dE
    • Rotate the laptop 180 degrees so that the battery compartment is now furthest away from your body.

  6. BM62KAjI6ZVVVqfx
    • Turn the laptop over so that you can easily open the screen to a vertical position.

  7. fkQIQBEJVwG45FlE
    • Put your fingers under the top of the keyboard assembly directly below the Acer logo.

    • Carefully pull up on the center until you hear the tabs disengage from the bottom.

  8. XySaFqrjoeoskXh4
    XySaFqrjoeoskXh4
    VpNSTSoqhKBd2XCJ
    IjDKQH6tGjAx3leC

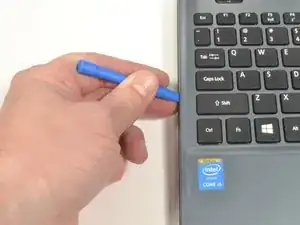

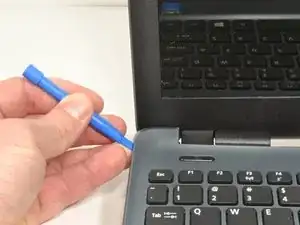

    • Work your way around the seam with the plastic opening tool carefully prying the base and top cover apart.

    • If you have difficulty with the plastic opening tool, use a metal spudger but be more cautious to not damage or mar your laptop case.

  9. NgOQUhsKUpSMhfdm
    • When the two halves are separated, carefully lift up the front of the keyboard and touchpad assembly.

    • You will see three ribbon cables attached to the motherboard.

  10. XYH2QwCgSUofGLl2
    XYH2QwCgSUofGLl2
    bSKgGfSBNSJLnEGv
    HRvN4FLGL5pSWF4m
    • Closest to the ribbon cable on the zero insertion force (ZIF) connector is a white locking tab.

    • Carefully lift up on the locking tab with the plastic opening tool to release the ribbon cable. (Picture 2)

    • Remove the ribbon cable from the connector.

  11. CnPn3w1KWRcbZ62C
    CnPn3w1KWRcbZ62C
    uWoJrxecU1wwNyNI
    IMGbRDe1561F24cA
    • Closest to the ribbon cable on the ZIF connector is a black locking tab.

    • Carefully lift up on the locking tab with the plastic opening tool to release the ribbon cable. (Picture 2)

    • Remove the ribbon cable from the connector.

  12. nvYdHfRdaRHoZEEv
    nvYdHfRdaRHoZEEv
    axILXZW4ETLyZCxD
    dpuvGAdvMTMCEOGU

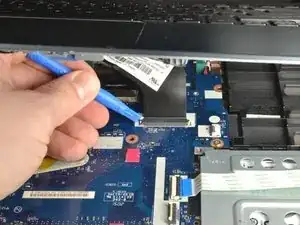

    • On each side of the large connector there are two white tabs.

    • Carefully push away from you with the plastic opening tool on each white tab to release the cable. (Picture 2)

    • Remove the ribbon cable from the connector.

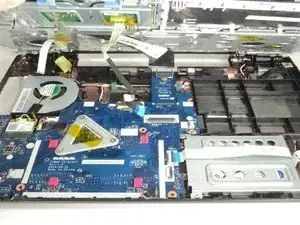

  13. mDrhgbGSFZml3uOM
    mDrhgbGSFZml3uOM
    NgH63SqosMesJwpP
    ujessdYdvCWijSUV

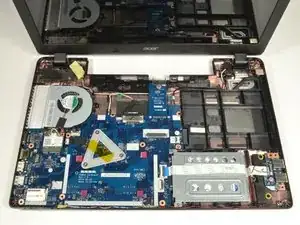

    • Once all three ribbon cables are disconnected, lift off the top cover with the keyboard and touchpad.

  14. IlVn11uVJV2H6LH3
    IlVn11uVJV2H6LH3
    MT2vmPfigFdhXo3c

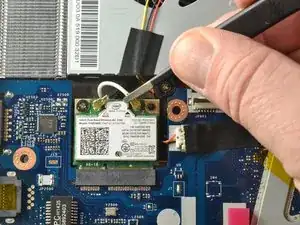

    • Locate the Wi-Fi card. It is just below the fan and has a white coaxial cable and a black coaxial cable attached to it.

    • Grab the section of the white coaxial cable behind the brass connection using ESD safe blunt nose metal tweezers.

    • Carefully lift the white and black coaxial cables up and forward to disconnect the them from the Wi-Fi card.

  15. FjSLvuMgXRVptwNW

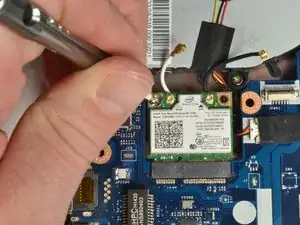

    • Use a Phillips #0 screwdriver to remove the 3 mm screw from the upper left corner of the Wi-Fi card.

    • The edge of WiFi card will lift up as the screw is removed.

  16. ZORbAj1oW5BccCeK
    ZORbAj1oW5BccCeK
    HoUWH5aLaZTRmlL2

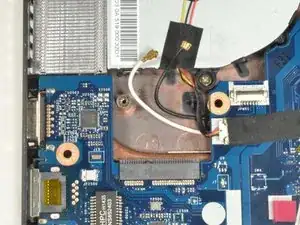

    • Grab the upper left corner of the Wi-Fi card with your fingers.

    • Gently pull the Wi-Fi card away from the socket.

  17. RKsQOVRZVi5JqgDn
    RKsQOVRZVi5JqgDn
    EgALGFdjqjJrivpQ
    ex6WOK23xbV2of5P
    • Locate the CPU cooling fan in the upper left corner of the laptop.

    • Using a Phillips #0 screwdriver, remove the two 4.5 mm screws that secure the fan to the case.

  18. T5GheoaAbrZUZvy4
    T5GheoaAbrZUZvy4
    hZClWIeJEweAPTmG
    RRLINjKOkpTykaem

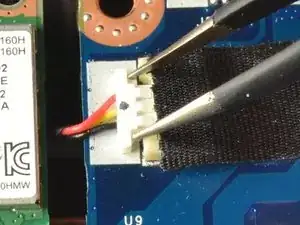

    • Place the tips of the ESD safe pointed tweezers between the plug and the socket of the fan connection.

    • Gently push the tweezers to the left to disconnect the fan plug.

    • Move the fan connector and its wires to free them from the motherboard and the Wi-Fi card.

  19. vANdkHnGhokdllED
    vANdkHnGhokdllED
    cHOJJlTAm3hIWLDY
    • Lift the curved end of the fan by about 30 degrees.

    • Use your hand to lift the fan up and to the right until it is clear of the case.

    • If you feel resistance, check if the fan connector and wires are stuck under the motherboard or under the Wi-Fi card. If the connector or wires are stuck, gently free them.

  20. ZviLPEI4JYsvkuRw
    ZviLPEI4JYsvkuRw
    Kn4UmEj2jTCojQEX

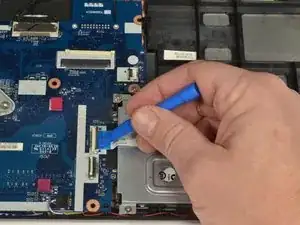

    • Locate the hard drive and its carriage at the lower right corner of the laptop.

    • Release the USB port ribbon cable by using the plastic opening tool to carefully lift up the black locking tab of the ZIF connector.

    • Move the USB port ribbon cable to the side.

  21. DgIh2ORnuUtXCM6x
    DgIh2ORnuUtXCM6x
    ZtlvW6mEWTHVYSmM

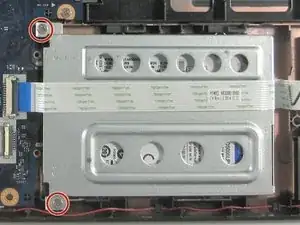

    • Use a Phillips #0 screwdriver to remove the two 4 mm screws securing the hard drive carriage in place.

  22. B5T2aQ5qlZPZpQXN
    • Hold the right side of the laptop in place with your right hand.

    • Put the fingers of your left hand along the top edge of the hard drive carriage.

    • Push the hard drive carriage towards your right hand to disconnect it from the motherboard.

    • This procedure may require more force then other procedures.

  23. IeSRWXiiZ2CMBKqj
    IeSRWXiiZ2CMBKqj
    QUZiWRCHA6HsEkkE
    • Lift up the hard drive carriage on the edge closest to your body to remove it.

    • If doing the motherboard replacement guide, skip the next step.

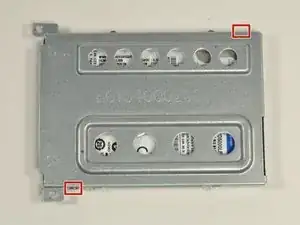

  24. DGIPoyIH6niFjyTC
    DGIPoyIH6niFjyTC
    rOGExDGRXiFlQVKA
    gM4ZX1xTirEtGx11

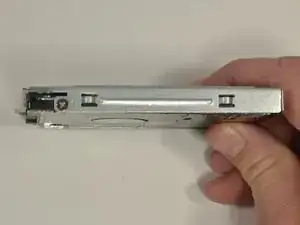

    • Hold the hard drive carriage with your non-dominant hand along one side. Ensure one of the Phillips screws is visible.

    • Using a Phillips #0 screwdriver, remove the 3 mm screw to release the side of the hard drive from the carriage.

    • Repeat the previous bullet to remove the second 3 mm Phillips #0 screw.

    You shouldn’t need to do this step to do a RAM replacement.

    Sean Kane -

  25. 3Aigt1HSordYdwQS
    3Aigt1HSordYdwQS
    MO4f2sjBN1AloCTc

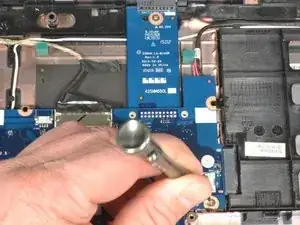

    • Use a Phillips #0 screwdriver to remove the two 4 mm screws.

    When re-assembling, make sure the cd tray is properly inserted under the edge of the motherboard before you screw down the motherboard.

    Sean Kane -

  26. 1QbHSPOIlLerG5mx
    1QbHSPOIlLerG5mx
    BLQJ3ZjCKagJoHFG

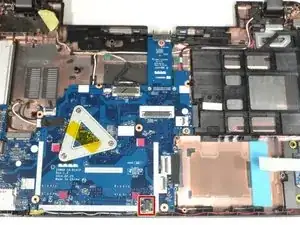

    • Place the tips of the ESD safe pointed tweezers between the plug and the socket of the speaker connection.

    • Gently push left to disconnect the speaker plug.

  27. hNyQqtIOlqnhK4se
    hNyQqtIOlqnhK4se
    jccsQGgKKJHHYGCE

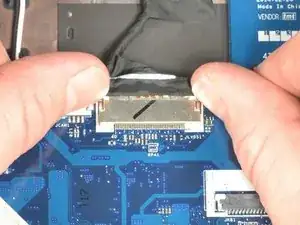

    • Place your fingernails on each side of the screen connection plug. Gently push away from your body to disconnect the plug.

  28. 2GQXaLT21csEjo5S
    • Carefully lift up on the right edge of the motherboard near the hard drive connector.

    • With minimal force, pull the motherboard to the right freeing the ports on the left from the case.

    • Put down the right side and allow the motherboard to rest in the case.

    • There is still one connection to be removed which lies underneath the motherboard.

    • Lift the left side of the motherboard up and turn it over so the ports are now facing right.

  29. ZUUTQrdUVVmDfGK5
    • Grip the edge of the motherboard closest to your body with your non-dominant hand.

    • Grip the power connection wires with your dominant hand and gently pull away from your body to disconnect.

  30. VMcTEL2iXvAObSjp
    • Lift the motherboard out of the case.

  31. jhCggLf2aVHqugTw
    • The RAM modules are on the underside of the motherboard at the lower edge.

    • After following the previous steps of this guide, they should be closest to your body and face up.

  32. BJBMXnA3PAO4ekE6
    BJBMXnA3PAO4ekE6
    VWZxXrO6xkTwSBKd
    • There are two clips holding each RAM module into its respective connector.

    • Use your fingernails to gently pull each set of clips away from the RAM module at the same time.

    • When disengaged, the RAM module will pop up slightly.

    • Repeat this procedure for the remaining RAM module.

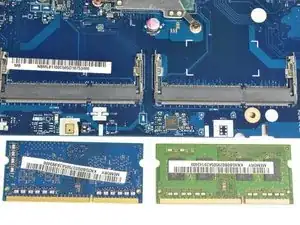

  33. XASBQulX2KdmlrnO
    XASBQulX2KdmlrnO
    Eoe1o2QnVqPls3CC

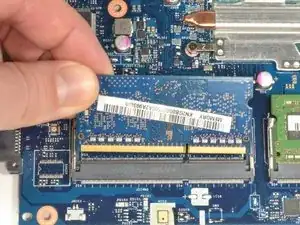

    • Grip the upper left corner of the RAM module with your fingers.

    • Pull the module away from your body at a slight incline to remove it from the connector.

    • Repeat this procedure for the remaining RAM module.

    it supports only the DDR3L ?

    oussama safar zitoun -

Conclusion

To reassemble your device, follow these instructions in reverse order.
