Aneng AN8008 Fuse Replacement

Written By: Sebastian
  • Comments: 0
Aneng AN8008 Fuse Replacement

Difficulty

Easy

Steps

7

Time Required

1 minute

Introduction

Occasionally, your Aneng AN8008 Multimeter may encounter a blown fuse, typically due to overloading or a voltage surge during measurements. Replacing the fuse is a straightforward process that ensures your multimeter continues to function accurately.

This guide provides step-by-step instructions on how to replace a blown fuse in your Aneng AN8008 Multimeter. Whether you need to replace the fuse for amperage or voltage measurements, the following steps will guide you through disassembling the multimeter, accessing the fuse, and ensuring proper installation of a new fuse.

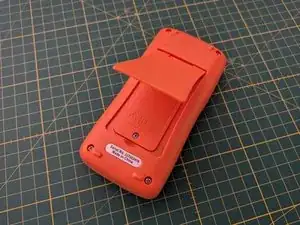

  1. NHELJOPmPsNx2r2X
    NHELJOPmPsNx2r2X
    uVXFDVaTRgnZXOt5

    • Place the multimeter on its front.

    • Flip up the kickstand.

  2. Q5xTdrbnO1wZNsVH

    • Use a PH1 screwdriver to unscrew the single screw holding the battery cover and kickstand.

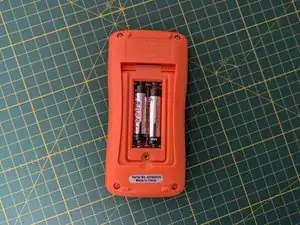

  3. QQ4IfSl6dPZmHkGi
    QQ4IfSl6dPZmHkGi
    EGuBjQWVRwYMQWcD

    • Remove the battery cover and kickstand.

    • Remove the batteries, if present.

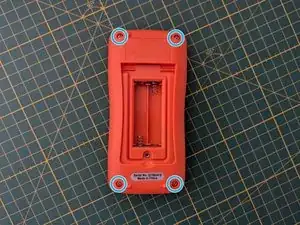

  4. lYFHblaCPlH2oaQu

  5. KVXGFB4utAJoauD2

    • Insert a pick into the top gap between the backshell and front cover.

    • Partly leverage the front cover away from the backshell.

  6. 65XTipfwKwKJi5kW
    65XTipfwKwKJi5kW
    mej5MC3DuVxuLTZo

    • Insert a pick into the bottom gap between the backshell and front cover.

    • Fully leverage the front cover out of the backshell.

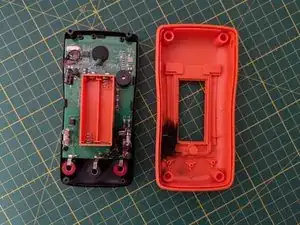

  7. gxnuJqJMJKWqjVYO
    gxnuJqJMJKWqjVYO
    cfNj2oRUQc4OOUEA

    • Locate the two fuses:

    • A 10A fuse for amperage measurements.

    • A 200mA fuse for voltage measurements

    • Clean any soot from the contacts using cotton swabs and rubbing alcohol to ensure a good connection before installing a new fuse.

Conclusion

To reassemble your device, follow these instructions in reverse order.
