Introduction

Use this guide to replace the fan on your Auking M8-F projector.

The fan is the part of the projector that helps reduce the excess heat that comes while using the projector. If the fan is not properly managed, the projector might resort to overheating. There are some cases where the projector will create loud noises from the fan, which is an indication of overheating. The fan will likely need a replacement if your projector is showing any of the symptoms.

Before continuing with this guide, please take a look at the troubleshooting page to see if the cause of overheating is coming from the fan. The problem could sometimes be high environmental temperatures.

Before beginning, be sure to turn off your projector completely.

  1. CBsDhfycutV1VHPo
    CBsDhfycutV1VHPo
    EFOh2Na52LaNyiVQ
    • Make sure that the device is unplugged from any power source before attempting any repairs.

    • Flip the projector on its opposite side.

    • Remove all six of the 11 mm screws on the base of the projector using a Phillips #1 screwdriver.

    • Remove the two 14 mm screws using a Phillips #1 screwdriver.

  2. pAnRqNhsOX4HSqPI
    pAnRqNhsOX4HSqPI
    15ywIlWMAshRpqCu
    GkZultZJG4UKvhqL

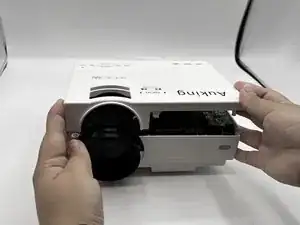

    • Carefully prop open the top of the projector.

    • To remove the cord that is attached to the top, carefully wiggle the cord out.

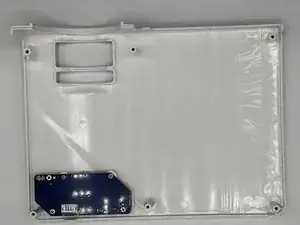

    • Remove the top lid.

  3. AMaYvKXlJl2B15Th
    AMaYvKXlJl2B15Th
    yNnQyZxcknyLeUcE
    oOQOitCXuGKj4aZd
    • Flip up the black locking flaps then remove the two ribbon cables.

  4. CjOicRXPIAZACnBO
    CjOicRXPIAZACnBO
    RL5qZuLeXfwCvTMO

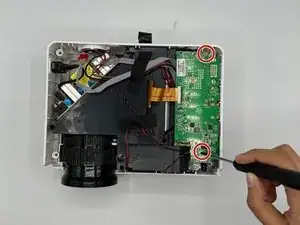

    • Remove the two 9 mm screws using the Phillips #00 screwdriver.

  5. BwaqWU11HIDCaKKw
    BwaqWU11HIDCaKKw
    QHnUcoLGYLmLoXyq
    • Carefully disconnect the wires that are attached to the motherboard.

    • Remove the motherboard.

  6. VbV5tIUEkolBNXBJ
    VbV5tIUEkolBNXBJ
    vNf3OFMD1rBEJwRQ
    • Remove the two 9 mm screws using a Phillips #0 screwdriver to detach the small black panel.

  7. 2vNuLRc5koqswKjA
    2vNuLRc5koqswKjA
    hte5SguLaPRqGMsN
    • Carefully pull out the fans from the projector.

Conclusion

To reassemble your device, follow these instructions in reverse order.
