Introduction

Use this guide to replace your damaged or old lens for your Auking M8-F projector.

The lens is a component of the projector that is in control of how the images appear once the projector is on. A faulty lens can cause images to be blurry or affect its overall performance of the projector. In some instances, having a damaged lens can cause the image to not appear properly.

Before following this guide, please be sure to take a look at the troubleshooting page to see if the problem for the images is because of the lens. Some cases, the problem could be the keystone correction or the focus wheel.

Before continuing this guide, be sure to turn off your projector completely.

  1. oe1dEyVtHQlWUPWE
    oe1dEyVtHQlWUPWE
    SdrZPIuADheKDYEx
    • Make sure that the device is unplugged from any power source before attempting any repairs.

    • Flip the projector on its opposite side.

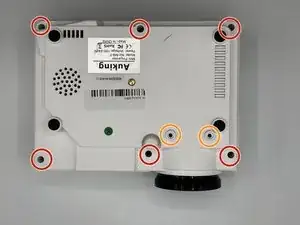

    • Remove all six of the 11 mm screws using a Phillips #1 screwdriver.

    • Remove the two 14 mm screws using a Phillips #1 screwdriver on the base of the projector

  2. ncdvr1KYNdngEXER
    ncdvr1KYNdngEXER
    Ae1cOu2UkYpBVePY
    vEhvJyhWGIEAnPns

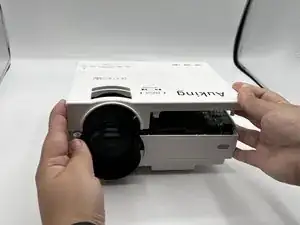

    • Carefully prop open the top of the projector.

    • Remove the cable attached to the top lid.

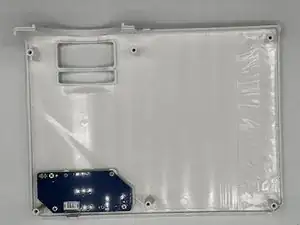

    • Remove the top lid.

  3. lnvPKbrrYnRnw6O3
    lnvPKbrrYnRnw6O3
    AoKtRDT2TkuOZgBR
    • Remove all four of the the 9 mm screws using a Phillips #1 screwdriver.

  4. DyFrPKOYTfLRLZMP
    DyFrPKOYTfLRLZMP
    YeyUfNdkv6hZdt1W
    FrrEZQYDex4tjBLJ

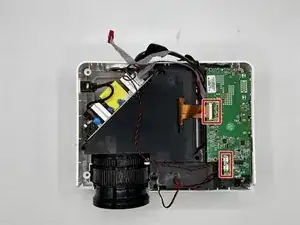

    • Flip up the black locking flaps then unplug the ribbon cable.

    • Disconnect the other wires connected to the motherboard.

    • Remove black panel.

  5. PxxP6tUKDGUpOvbS
    PxxP6tUKDGUpOvbS
    5PHQMUsEkWGlo61P

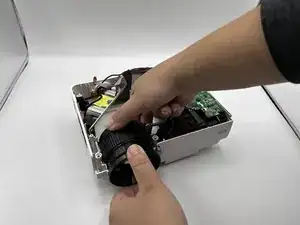

    • Using both hands, hold the lens' holder and turn the lens counterclockwise to remove.

Conclusion

To reassemble your device, follow these instructions in reverse order.
