Introduction

Use this guide to replace the power panel on your AuKing M8-F projector.

The power panel is a component found on devices responsible for controlling whether the device is powered on and functioning or turned off, conserving power and the state of the other components. A faulty power panel could lead to problems like turning the device on and off. This could over time damage the condition of certain components making them less functional.

If you are experiencing issues with the power button or the rest of the button panel, please take a look at the troubleshooting page to find another possible cause for your condition. If no other condition matches your problem, then the power panel might be the problem.

Before continuing this guide, be sure to turn off your projector completely.

  1. aQ6CAbA6L2ABLW6h
    aQ6CAbA6L2ABLW6h
    mbnSPWjLmpuNcjmx

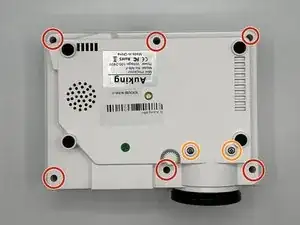

    • Make sure that the device is unplugged from any power source before attempting any repairs.

    • Flip the projector on its opposite side.

    • Remove all six of the 11 mm screws using a Phillips #1 screwdriver.

    • Remove the two 14 mm screws using a Phillips #1 screwdriver.

  2. FpxrymFxby2bGBCD
    FpxrymFxby2bGBCD
    pDjR3EMXOxRvbjRt

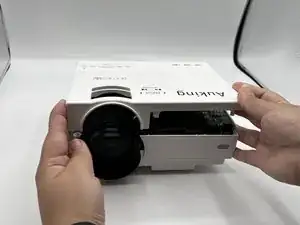

    • Carefully prop open the top of the projector.

    • Disconnect the cable attached to the top lid.

    • Remove the top lid.

  3. KeXGQjdKQptZSjW3
    KeXGQjdKQptZSjW3
    QVgSq6YSIJhHVQsL
    • Remove the wire cord attached to the top panel to separate both the top panel and the wire cord.

  4. xHHkSQSMIXI3uWsr
    xHHkSQSMIXI3uWsr
    TxcWfZlWFP2byr2a
    NYxMHb4TDUa4QS1N
    • Remove six of the 5 mm screws using a Phillips #00 screwdriver to detach the power panel.

    • Remove the power panel.

Conclusion

To reassemble your device, follow these instructions in reverse order.
