Bissell SpotClean ProHeat 5207U Water Pump Replacement

Written By: Trenton Hedgecock
  • Comments: 0
Bissell SpotClean ProHeat 5207U Water Pump Replacement

Difficulty

Moderate

Steps

6

Time Required

20 - 40 minutes

Introduction

Is your Bissell SpotClean ProHeat 5207U not spraying water? It could be because of a failing water pump. Follow this guide to replace the water pump for your Bissell SpotClean ProHeat 5207U.

  1. orUP45JCrPJDVqoi
    orUP45JCrPJDVqoi
    UECiwMWCUXHVNNUy

    • Ensure the device is unplugged.

    • Make sure that you have removed both the clean and dirty water tank so that you can unscrew the proper screws.

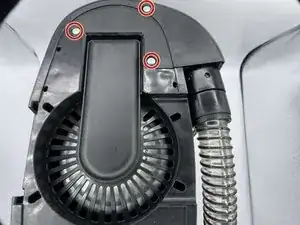

    • Remove the marked 19.7 mm screws on the underside of the device using the Phillips #00 screwdriver.

  2. Seows2np6HnRjSpX
    Seows2np6HnRjSpX
    RwNWWmCFwyJME2Ej
    DCTMNmBeHMoX5NTq

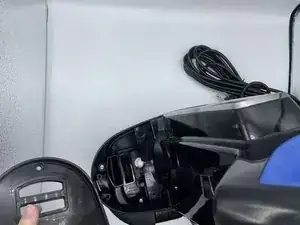

    • Remove the plastic top located where the dirty water tank was previously situated.

    • Using the Phillips #00 screwdriver, unscrew the three 17.2 mm screws.

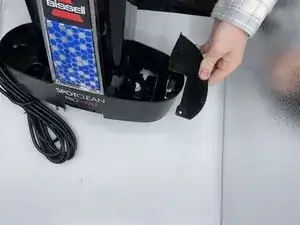

    • Remove the plastic lip that was previously held by the screws.

  3. KAvp6bsPNjSp6rlA
    KAvp6bsPNjSp6rlA
    wcN4obBTqL2BLEfu

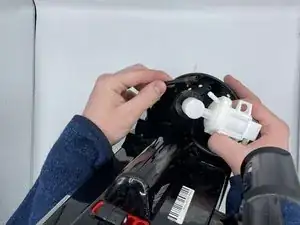

    • Using pliers, pinch the hose clamp tabs together, then remove the clamp.

    • Remove the water hose from the water pump.

  4. gw4MLJse256vs2u3
    gw4MLJse256vs2u3
    bfaWhwm61ESRYCuY

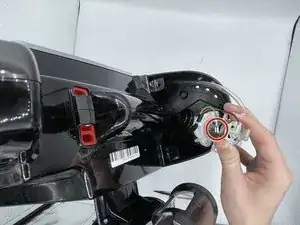

    • Remove the green wire by pulling it away from the pump.

    • Be careful not to bend where the wire is plugged into.

  5. ATeOdWtMf1kBKBlS
    ATeOdWtMf1kBKBlS
    Lu314eovvPTUIwev

    • Pull the clear hose away from the pump until it is removed.

  6. cfwcapTLMQCQLQVU
    cfwcapTLMQCQLQVU
    UCltmtgED2ZPnBQW

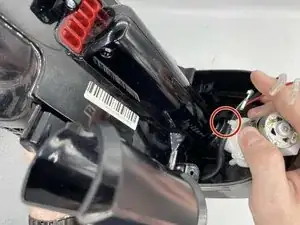

    • Remove the zip tie from the water pump.

    • Replace the old water pump with the new water pump.

Conclusion

To reassemble your device, follow these instructions in reverse order.
