BlackBerry Tour 9630 LCD Screen Replacement

Written By: Mia
  • Comments: 0
BlackBerry Tour 9630 LCD Screen Replacement

Difficulty

Moderate

Steps

13

Time Required

15 minutes

Introduction

If your screen is cracked or damaged, then you will need to replace your screen. Use these step-by-step instructions to replace your BlackBerry Tour 9630 LCD screen.

  1. GgYbLg2dBmIVRWVJ
    GgYbLg2dBmIVRWVJ
    OqrfTlhkVI2yAiJs

    • Position the phone so that the keyboard is facing down and the back is facing up.

  2. yhSFghavJOOGRAsi
    yhSFghavJOOGRAsi
    HEwvJi5CMeGc4Kyr

    • Push the center silver button upwards to release the back cover.

    • Take the back cover off and set it to the side.

  3. JZadApjerFUFvLEM
    JZadApjerFUFvLEM
    oMuPGDNuAR4UWwh5

    • Grip the battery where the light grey half circles are located and pull up.

    • Set the removed battery to the side with the back cover.

  4. KDtBkAkvUi6GL2Jm

    • If there is an SD card, press gently on the card and slide up to remove.

    • If there is a SIM card, press gently on the card and slide left to remove.

    • Use the T6 Torx screwdriver to remove the four 8.00mm screws from the back of the phone.

  5. HPIM2Ipx2JcmyXLK
    HPIM2Ipx2JcmyXLK
    G6HQG5tuNMq2GuRd

    • Using an opening tool, pry the top plastic covering off. As shown in the second picture.

    • There is glue holding the top plastic covering. Additional pressure may be needed.

  6. RYxSPWi1KYhUOOkn

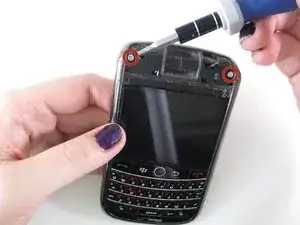

    • Use the T6 Torx screwdriver to remove the two 8.00mm screws from the top of the phone.

  7. 4VI1D14iPYfEaeBX

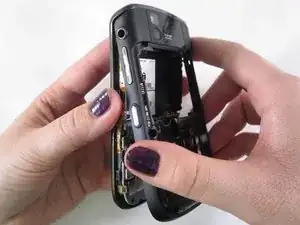

    • Remove the back casing.

    • This may take some wiggling to fully remove the part.

  8. cfCHJUYZ2qiCqEEZ
    cfCHJUYZ2qiCqEEZ
    yxwOX4ICARVHKB1Z

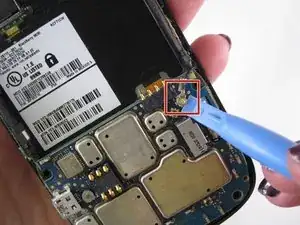

    • Using a small opening tool, pry up the pop ribbon cable from the motherboard.

  9. UQbTsd522KqqhRvd
    UQbTsd522KqqhRvd
    ZpEGE3GLg2HHFCcM

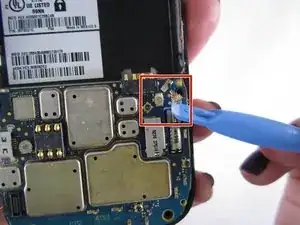

    • Using a small opening tool, remove the side antenna cable.

  10. 2HUhu1lqcg1FTXrB

    • Gently push up on the keyboard from below to snap the front cover off.

    • Once you remove the front cover, the keypad and trackball will be loose.

  11. mXDwZGs2GXVMmSMT

    • Remove the keypad.

  12. GtJCZCrqEvGPkhPL
    GtJCZCrqEvGPkhPL
    dsvMiVMafGoB1ITq

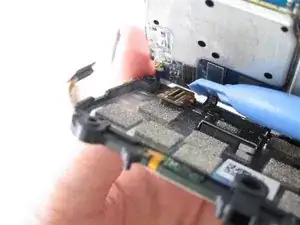

    • Gently lift the motherboard to expose several ribbon cables.

    • Use the small plastic opening tool to disconnect the orange LCD ribbon from the square end of the ribbon cables.

  13. PRRZ4pmCDsXUYE6C

    • Flip the phone over. Using the large plastic opening tool, pry the LCD screen from the motherboard.

    • Replace the LCD screen

    • The LCD screen is held in place with glue.

Conclusion

To reassemble your device, follow these instructions in reverse order.
