Canon PIXMA MP620B USB Reader Replacement

Written By: Val Fedorikhin

Comments: 0

Canon PIXMA MP620B USB Reader Replacement

Difficulty

Moderate

Steps

Time Required

15 - 30 minutes

Introduction

The Canon PIXMA MP620B is an all-in-one inkjet printer with an LCD screen, wireless network connectivity support, and high print resolution. Although it has wireless network connectivity, connecting via USB is sometimes the better option for a faster and more secure connection. If you're experiencing issues with the USB connection, such as a weak or non-existent connection, it could be time to replace the Canon printer's USB reader.

Tools

Step 1

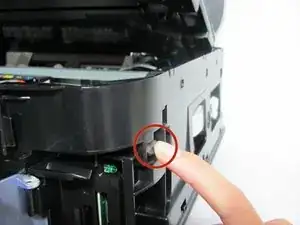

Locate the tabs on the top of the panel that hook down and into the black side panel.

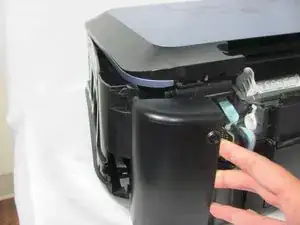

Insert the Spudger in-between the black panel and the blue panel as shown and pull the two pieces apart.
You will hear some snapping. Don't panic: this is just the hooks un-clipping.

Step 2

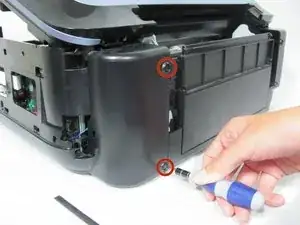

Remove the two screws from the back right black panel using the Phillips #00 screwdriver.

Step 3

There is a tab you will have to push down to remove the part.

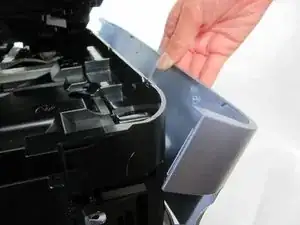

Once the tab is released, gently lift the cover away from the rest of the device to disengage the clips.
You will hear some snapping. Don't panic: this is just the clips un-clipping.

Step 4

After unclipping all the hooks, pull off the black side panel to reveal the inner circuit boards.

Step 5

Remove the two screws from the USB reader using the Phillips #00 screwdriver.
The angle for removing the screws can be somewhat challenging, try not to get too frustrated.
