DJI Phantom 4 Advanced Remote Controller Back Con Board Replacement

Written By: Gunnar Behny
  • Comments: 0
DJI Phantom 4 Advanced Remote Controller Back Con Board Replacement

Difficulty

Moderate

Steps

8

Time Required

2 - 5 minutes

Introduction

The Con Board is located under the back cover. This guide will help you remove and replace the Back Con Board from your DJI Phantom 4 Advanced Remote Controller.

Many issues that arise with a DJI Remote Controller are caused by a faulty Back Con Board.

Before beginning, disconnect your drone and power off the remote completely.

  1. PRIaEWyH5PGGmJGx

    • Remove the four screws with a Torx T8 screwdriver to access the back con board.

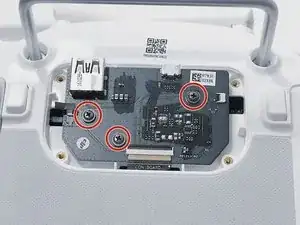

  2. wUXTmD6wcLRfKhwn
    wUXTmD6wcLRfKhwn
    fRx2XTAJbRentMZA

    • Remove three screws using a Phillips #00 screwdriver.

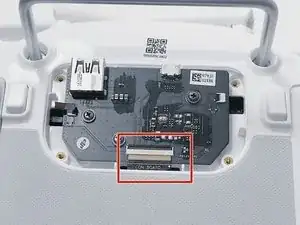

  3. DDU6dYsQn4olEbKY
    DDU6dYsQn4olEbKY
    sgt6doy1gH2krkXs

    • With tweezers, gently remove the large con board tab.

    • Use your hands to remove the two small clips. Pull out from the socket, in a horizontal direction.

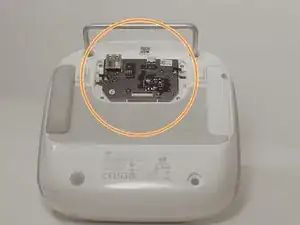

  4. jPdVUPpUHqrc4UBi
    jPdVUPpUHqrc4UBi
    vVA1t23yQTPafj4e

    • Peel off the rubber grips to access the screw holes.

    • Make sure to save your grips and do not to get them stuck to anything, you are going to want to save the adhesive.

    • Remove the back board and set it aside.

  5. YIrIaqne3wkgbLtK
    YIrIaqne3wkgbLtK
    XCXtaGNaFySJWTcM

    • Pull apart the back plastic panel.

    • Recommended tool for this would be the metal spudger, but not required.

    • Once the back panel is off, you will have access to the motherboard.

  6. ij2IOdeeH4paEf2y

    • Remove the three PH0 screws securing the PCB to the remote.

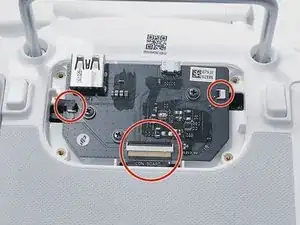

  7. kfVBqbZmGaXPZBcy
    kfVBqbZmGaXPZBcy
    eAFofaLREoU2NdBm

    • Remove each of the three ribbon cables from their tabs by pulling in a horizontal direction away from the socket.

    • Remove the Back Con Board.

  8. QMRrIhnnkMOytgiS

    • The board can now be replaced.

Conclusion

To reassemble your device, follow these instructions in reverse order.
