DJI Phantom 4 Advanced Remote Controller Control Sticks Replacement

Written By: Abdullah Muslih Abdul Samad
  • Comments: 0
DJI Phantom 4 Advanced Remote Controller Control Sticks Replacement

Difficulty

Difficult

Steps

13

Time Required

15 - 20 minutes

Introduction

This guide will demonstrate step by step detailed instructions on how to safely remove and replace the Control Sticks of a DJI Phantom 4 Advanced Remote Controller. Since this operation will require to disconnect the motherboard is highly recommended to start this task with the appropriate tools on hand as well as enough time.

During this process s lot of connectors are required to be unplugged with caution to avoid damages to other parts , compromising the functionality of the remote controller.

Someone might need to replace the control sticks because of faultiness such as, inaccurate navigation, drifting directions without input, and control stick not functioning at all.

  1. PRIaEWyH5PGGmJGx

    • Remove the four screws with a Torx T8 screwdriver to access the back con board.

  2. wUXTmD6wcLRfKhwn
    wUXTmD6wcLRfKhwn
    fRx2XTAJbRentMZA

    • Remove three screws using a Phillips #00 screwdriver.

  3. DDU6dYsQn4olEbKY
    DDU6dYsQn4olEbKY
    sgt6doy1gH2krkXs

    • With tweezers, gently remove the large con board tab.

    • Use your hands to remove the two small clips. Pull out from the socket, in a horizontal direction.

  4. jPdVUPpUHqrc4UBi
    jPdVUPpUHqrc4UBi
    vVA1t23yQTPafj4e

    • Peel off the rubber grips to access the screw holes.

    • Make sure to save your grips and do not to get them stuck to anything, you are going to want to save the adhesive.

    • Remove the back board and set it aside.

  5. YIrIaqne3wkgbLtK
    YIrIaqne3wkgbLtK

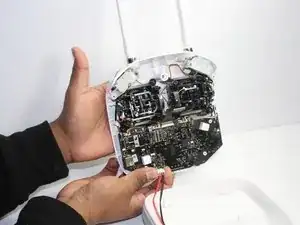

    XCXtaGNaFySJWTcM

    • Pull apart the back plastic panel.

    • Recommended tool for this would be the metal spudger, but not required.

    • Once the back panel is off, you will have access to the motherboard.

  6. QTZhEGq1BSdoD2w5
    QTZhEGq1BSdoD2w5
    PfCJVJdm2FwOFBqm

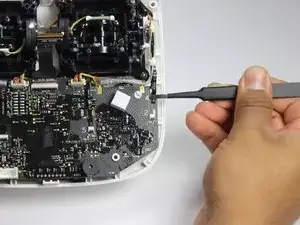

    FaIsUHW1IwkgAVY4

    • Disconnect ribbon tabs 1,2,5,8G, and 3.

    • Remove ribbon tab by pulling gently along motherboard. Do not pull straight out.

    • Then remove the plugs

  7. SHINqLWLPn24mGVc

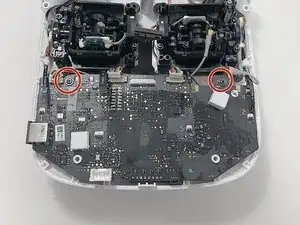

    SHINqLWLPn24mGVc
    MJUJF6VEAQxZF3WB

    • With the Phillips #00 screwdriver, remove the two Phillips screws.

  8. C6hs12qVqhRbaBV4

    • Double check to make sure all tabs, plugs and screws are removed or disconnected.

    • Gently lift motherboard out of the case.

  9. 1OLkDKnVDWmSIEcl

    • Remove the 10.7 mm Phillips screws using a Phillips #1 screwdriver.

  10. XfLLJZrUGboURZZh
    XfLLJZrUGboURZZh
    onc2WHKsPGgKUkir

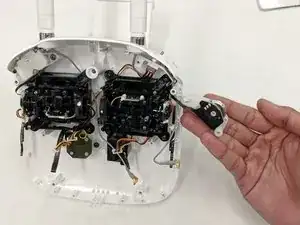

    kY3ixj6LriCdLkFh

    • Gently remove the Gimbal Wheel control component from the body.

    • Take caution with the fragile wires when removing this component.

  11. nPRId2tHSYAgjX1D
    nPRId2tHSYAgjX1D
    f44qO5TbMXYLMFfH

    • Remove the 4 10.7 mm Phillips screws using a Phillips #1 screwdriver.

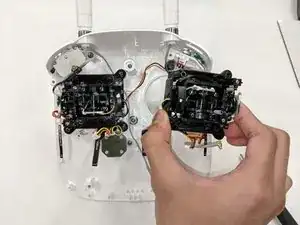

  12. QnP2BnkRPw3KyOcR
    QnP2BnkRPw3KyOcR

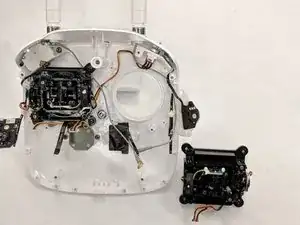

    IpZgmyymVeMSn5Sf

    • Gently remove the Control Stick component.

    • Take caution with small and fragile wires to avoid breaking them.

  13. uVq4dUp2Dn2Gvobx

    • Repeat step 9 through 12 to remove the other Control Stick.

Conclusion

To reassemble your device, follow these instructions in reverse order.
