DJI Phantom 4 Advanced Remote Controller Power Button Replacement

Written By: Angel Cortez
  • Comments: 0
DJI Phantom 4 Advanced Remote Controller Power Button Replacement

Difficulty

Moderate

Steps

11

Time Required

10 - 25 minutes

Introduction

The DJI Phantom 4 is a drone used for photography and videography. This guide will show you how to replace the power button on the Advanced Remote Controller. Make sure the controller is powered off during this process. Finally, keep track of all of your screws and the three different sizes.

  1. PRIaEWyH5PGGmJGx

    • Remove the four screws with a Torx T8 screwdriver to access the back con board.

  2. wUXTmD6wcLRfKhwn
    wUXTmD6wcLRfKhwn
    fRx2XTAJbRentMZA

    • Remove three screws using a Phillips #00 screwdriver.

  3. DDU6dYsQn4olEbKY
    DDU6dYsQn4olEbKY
    sgt6doy1gH2krkXs

    • With tweezers, gently remove the large con board tab.

    • Use your hands to remove the two small clips. Pull out from the socket, in a horizontal direction.

  4. jPdVUPpUHqrc4UBi
    jPdVUPpUHqrc4UBi
    vVA1t23yQTPafj4e

    • Peel off the rubber grips to access the screw holes.

    • Make sure to save your grips and do not to get them stuck to anything, you are going to want to save the adhesive.

    • Remove the back board and set it aside.

  5. YIrIaqne3wkgbLtK
    YIrIaqne3wkgbLtK
    XCXtaGNaFySJWTcM

    • Pull apart the back plastic panel.

    • Recommended tool for this would be the metal spudger, but not required.

    • Once the back panel is off, you will have access to the motherboard.

  6. QTZhEGq1BSdoD2w5
    QTZhEGq1BSdoD2w5
    PfCJVJdm2FwOFBqm
    FaIsUHW1IwkgAVY4

    • Disconnect ribbon tabs 1,2,5,8G, and 3.

    • Remove ribbon tab by pulling gently along motherboard. Do not pull straight out.

    • Then remove the plugs

  7. SHINqLWLPn24mGVc
    SHINqLWLPn24mGVc
    MJUJF6VEAQxZF3WB

    • With the Phillips #00 screwdriver, remove the two Phillips screws.

  8. C6hs12qVqhRbaBV4

    • Double check to make sure all tabs, plugs and screws are removed or disconnected.

    • Gently lift motherboard out of the case.

  9. JRTKFQZVIZqqHJCd
    JRTKFQZVIZqqHJCd
    d5b26H3rFT4SQ1Ll

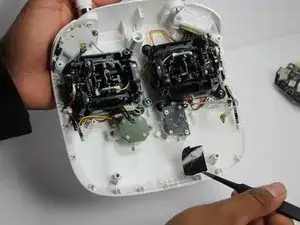

    • Carefully remove the plastic. This will help you gain access to the power button panel.

  10. OpjOvCXLV215Agbx
    OpjOvCXLV215Agbx
    bvyhcPR21wtGA3KI

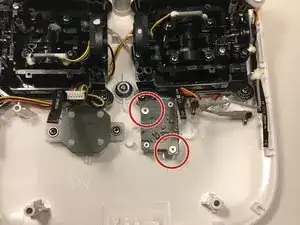

    • With a Phillips #00 screwdriver, remove the two screws on the power button panel.

  11. tLltNyODuaQ4umUZ

    • Gently pull the power button out from the panel. Replace it with a new one.

Conclusion

To reassemble your device, follow these instructions in reverse order.
