Dell Inspiron 15-7567 Touchpad Replacement

Written By: Dallas Lamorie
  • Comments: 0
Dell Inspiron 15-7567 Touchpad Replacement

Difficulty

Moderate

Steps

9

Time Required

15 - 20 minutes

Introduction

This may be needed if your touchpad is not working as it usually does.

  1. jp3Nml1p2iLDut1s

    • Turn off laptop before beginning.

    • Place the laptop upside down on a flat, stable surface.

  2. sNxMGaCZN4yv1DqI
    sNxMGaCZN4yv1DqI
    uJGq6cwytVoNxKMf

    • Remove the 3mm screw in the location shown, using a Phillips #1 screwdriver.

  3. cqGuhbwGIRHgKjGJ

    • Remove the panel from the sides and pull it out at an angle towards you.

  4. KSArSUdUUYuMqMiK
    KSArSUdUUYuMqMiK
    EZgNOTShNibEF1vB

    • Remove the five 3mm screws on the battery with a Torx (T8) screwdriver in the locations shown.

  5. VTP6rTQFlgcn33h6
    VTP6rTQFlgcn33h6
    3HOG2Ss6qeBYiIfd

    • Disconnect the power cord from the battery by using a pair of tweezers, your fingers, or the opening tools from the iFixit pro tech tool kit.

    • Pinch the clips on the left and right side while pulling on the cord at the same time.

  6. BMWwq22DuyvPq6tc

    • Pull the battery towards you.

    • Make sure to pull at an upward angle.

  7. H2JXhYMXBefuhYnN

    • Remove the clip holding the power cord on the Touch Pad by using tweezers, your fingers, or iFixit removing tools to gently pull up on the clip.

    • This should release the power cord as shown.

  8. gDTlNV6QVrI43KOm

    • Remove the four 3mm screws using a Phillips #1 screwdriver in the locations shown.

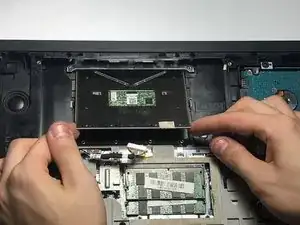

  9. vkDhqArGMXpRVb4l

    • Remove Touch Pad by pulling towards you gently at a slight upward angle.

    • The Touch Pad is now removed and ready to be replaced.

Conclusion

To reassemble your device, follow these instructions in reverse order.
