Dell Latitude 3189 SSD Replacement

Written By: Maximus
  • Comments: 0
Dell Latitude 3189 SSD Replacement

Difficulty

Moderate

Steps

6

Time Required

10 - 15 minutes

Introduction

The SSD is the primary storage device for the operating system and personal files on the Dell Latitude 3189. Use this guide to replace the SSD if you have issues such as a faulty SSD, or if you simply need more space.

Exercise caution when removing and reinstalling the SSD, the port is fragile and the contact pins may be damaged if you use too much force when removing or reinserting. The SSD should not need to be tugged and should gently come out without resistance.


The prerequisite for this guide is the Base Cover Replacement Guide, as in order to access the SSD you will need to remove the base cover. Before using this guide, completely power down the device, and unplug any cords or devices in the ports.

  1. JcYAqGXmrj5dIJLt
    JcYAqGXmrj5dIJLt
    QNnfKxAke6ZOaALy

    • Before beginning, power off and unplug the device.

    • Use a Phillips #0 screwdriver to loosen the seven captive screws that secure the lower case.

  2. dPphbD3G1ce2aVYc
    dPphbD3G1ce2aVYc
    FPFC2o41N1Pl6421
    qFBtPEYj4ClwOFgs

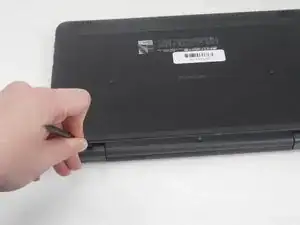

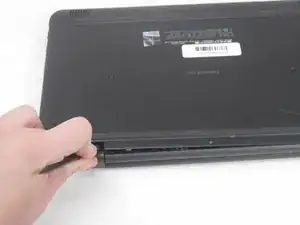

    • Insert a nylon spudger between the lower case and chassis at the two hinge spaces on the back side of the laptop and pry up the lower case.

    • Do not use metal items to pry the base cover off, like a screwdriver, as it could slip and damage internal components.

    • Avoid prying at the ports which could damage the ports.

  3. pobDUDqaJWFAt1SH
    pobDUDqaJWFAt1SH
    pcPorEVyIAFZEERI

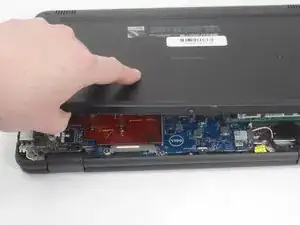

    • Grip and pull the lower case up and away.

    • If you feel any significant resistance, double check that all of the screws are loosened.

  4. lFvtJ4vDOnjHT6Ph
    lFvtJ4vDOnjHT6Ph
    CCBg6y2YwGpmpMOj
    ZLetm4DOJDm2sBaJ

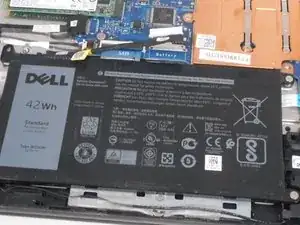

    • Before performing any operations within the laptop, unplug the battery.

    • Using the pull tab on the connector, pull the connector directly out of its motherboard port.

  5. dKBGyGWFIDFRyPgq
    dKBGyGWFIDFRyPgq
    HI3kkGbjGUVLAVLf

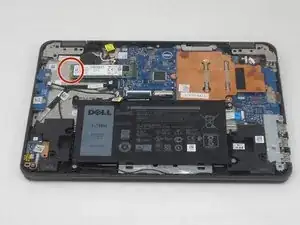

    • Use a Phillips #0 screwdriver to remove the 3.2 mm screw that secures the SSD.

    • The SSD will pop up a few millimeters; this is normal.

  6. I6Kxm3j2rfpvXJOC

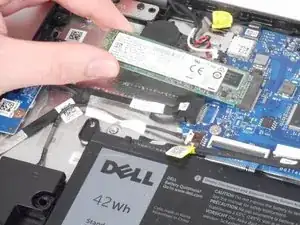

    • Gently pull the SSD out of its connection, maintaining the same angle that it flipped up to.

    • Do not pull directly up on the SSD after the screw is removed as you could damage the SSD or the connector.

Conclusion

To reassemble your device, follow these instructions in reverse order.
