Dell Latitude 7480 Battery Replacement

Written By: brandon bradshaw
  • Comments: 5
Dell Latitude 7480 Battery Replacement

Difficulty

Moderate

Steps

6

Time Required

10 - 20 minutes

Introduction

This guide shows how to remove and replace a worn battery for the Dell Latitude 7480 laptop.

For your safety, discharge your battery below 25% before disassembling your device. This reduces the risk of a dangerous thermal event if the battery is accidentally damaged during the repair. If your battery is swollen, take appropriate precautions.

  1. J3GhbNaivRMkES62

    • Make sure laptop is unplugged and powered off.

  2. jBOeQodojNdeKGuf
    jBOeQodojNdeKGuf
    KgKPA6POX2vhKLcP

    • Use a Phillips screwdriver to remove the eight screws securing the back cover.

    • Remove the back cover.

    I actually used the PH00 screw bit, but the PH0 screw bit fits as well.

    Jordan Rush -

  3. hblHokENSPQoUAQJ
    hblHokENSPQoUAQJ
    KYQsc5rYDbBMEcOK

    • Use a Phillips screwdriver to remove the two screws securing the battery in place.

    • Carefully peel the tape holding the battery cable in place.

    • Be careful not to puncture the battery.

  4. s6oSYWN5XRS4ivPH
    s6oSYWN5XRS4ivPH
    mXPQaublKfxuFh1u
    MJFXaxWcPBhoXXmJ

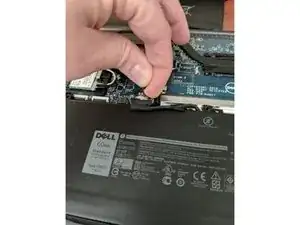

    • Using the pull tabs pull up and remove the battery connector from the motherboard.

    • Remove the battery and set aside to remove the connector cable.

    • If your new battery did not come with a connector cable you will need this.

    • Remove the connector cable. Set aside to apply to the new battery.

  5. ycULD1aLSUVNUPsd
    ycULD1aLSUVNUPsd
    PHthLWDOLuc6GUbn

    • Connect the battery cable to the new battery. You can skip this step if your new battery came with one installed.

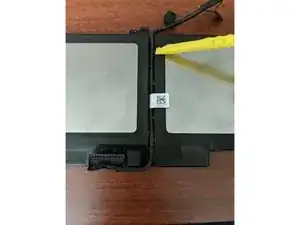

    • Connect one end of the battery cord to the battery. Route the cord in the channel between battery cells.

  6. uucwk3O5pKCWdZJJ
    uucwk3O5pKCWdZJJ
    sHwJKLAScnWv3JNu

    • Install the new battery by doing the steps in reverse. Be sure to test the device with and without AC power applied to the laptop.

    • Dispose of old battery properly and safely.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler.
