Introduction
In this guide we will be showing you how to identify potential devices or components which may be overheating causing shutdowns.
PLEASE READ: This is a temporary repair, and does not permanently correct the issue with these laptops -- the GPU itself has failed and needs replacement or a new motherboard! This will get it going short-term, but the laptop will always have problems and fail at more frequent rates until it is no longer reflowable!
Tools
-
-
Dust acts like an insulator and contains moisture which can affect computer components if left over time.
-
Turn off computer and unplug AC adapter.
-
Use a can of compressed air to remove dust from vents, fan and power supply fan.
-
Removing dust should be considered routine maintenance and done on a regular basis.
-
-
-
Although a dead battery won't cause the laptop to overheat, it will cause it to shutdown unexpectedly.
-
Make sure battery connection is secure.
-
Make sure the Adapter is properly plugged into the wall and laptop.
-

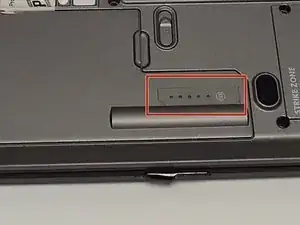

Dell batteries come with a battery life indicator located on the bottom of the laptop. Press and release the test button. Each lights represent a 20% charge. If no lights are present, replacing the battery may be necessary.
-
-
-
-
If the fan is not working properly the laptop will overheat and shutdown.
-
Look to see if fan is spinning and dust free.
-
Go into Control Panel/ System/Device Manager/System Devices/and look for the fan. Right click on properties to see if the device is working properly.
-
Replace fan if necessary.
-
-
-

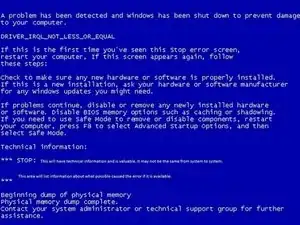

Blue Screen of Death (BSOD)
-
BIOS - out of date temperature table can cause heat issues.
-
Check the Dell website and download the latest BIOS. http://www.dell.com/support/home/us/en/1...
-
-
-
If you've gotten here, you most likely have an issue with your GPU due to this recall: Dell Blog Post about NVIDIA GPU Recall
-
To fix this, you can try to "re-flow" the soldier on the motherboard, which should give you a little more life out of the laptop.
-
Follow this guide to remove your motherboard: D820 Motherboard Removal
-

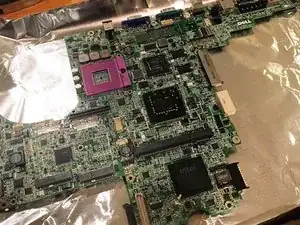

Once you have remove the motherboard, clean off all of the thermal paste from the two remaining chips, one NVIDIA GPU, and another Intel.
-
Also remove all stickers, foam, and plastic from the motherboard, as they will melt or catch fire in the next step
-
Pre-heat your oven to 395 degrees Farenheight.
-
Place the motherboard on a sheet of foil, on a baking sheet. Place into the oven for 10 minutes. Then remove and let cool
-
Re-assemble laptop following motherboard steps in reverse.
-
To reassemble your device, follow these instructions in reverse order.
