Dell Vostro 3510 Battery Replacement

Written By: Jhoan Cruz
  • Comments: 0
Dell Vostro 3510 Battery Replacement

Difficulty

Moderate

Steps

6

Time Required

5 - 15 minutes

Introduction

This guide is a battery replacement for the Dell Vostro 3510. All you need is a Phillips #0 Screwdriver and a spudger to pry it open

  1. T1tfX4CTU2VHDqvw
    T1tfX4CTU2VHDqvw
    SmDiKuYHQujO6Ve6

    • Ensure the laptop is powered off.

    • Flip the laptop over.

  2. Y1qwabTjmMOVgJjE

    • Use a Phillips #0 screwdriver to remove the screws highlighted with red circles.

    • Loosen the two 1 mm captive screws (orange circles in the image) on the back corners of the bottom cover.

    • Keep track of each screw and make sure it goes back exactly where it came from to avoid damaging your laptop.

  3. ER2L66uAQgdHusNl
    ER2L66uAQgdHusNl
    KhdZAVD1prGDMW2m

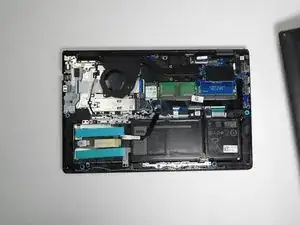

    • Open up the back cover of the laptop.

    • It is much easier to open up the laptop with any type of spudger or with Jimmy.

  4. sPKuou4ABhSlcLRZ
    sPKuou4ABhSlcLRZ
    xxDv6I1NdEfXspKV

    • Remove the battery cable from the motherboard by lightly pulling on the black tape attached to the ribbon cable.

    • The battery cable is the one circled in red.

  5. HDccP2spbWaQEqcu

    • Remove the 0.1 mm battery screws seen in picture one with Phillips #0 screwdriver.

    • Carefully move the additional sata storage ribbon cable to the side.

  6. WJMG3QF2dFUJ3c4C

    • Gently remove the battery from the laptop.

    • Be careful with the other ribbon cables.

Conclusion

To reassemble your device, follow these instructions in reverse order.
