Dell Vostro 3510 Display Replacement

Written By: Jhoan Cruz
  • Comments: 0
Dell Vostro 3510 Display Replacement

Difficulty

Moderate

Steps

9

Time Required

7 - 15 minutes

Introduction

If your laptop display isn't showing up, it's probably because the screen display is broken. This guide shows you how to replace the display screen on your laptop.

  1. AVHZAQWSZYACQUZf
    AVHZAQWSZYACQUZf
    CUbxMeSdoEIgAEJW

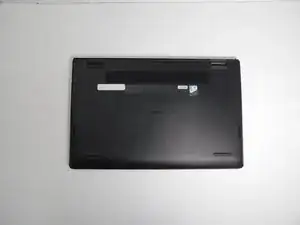

    • Ensure the laptop is powered off.

    • Flip the laptop over.

  2. IFlRDpHnLqsWrKW4

    • Use a Phillips #0 screwdriver to remove the six 1 mm screws (circled in red).

    • Loosen the two captive 1 mm screws on the back corners.

    • Keep track of each screw and make sure it goes back exactly where it came from to avoid damaging your laptop.

  3. 5YZQSHUQWnVnaNkN
    5YZQSHUQWnVnaNkN
    XtJvgbOuSNP2imnU

    • Open up the back cover of the laptop.

    • It is much easier to open up the laptop with any type of metal spudger or with Jimmy.

  4. PDgcAgsVTpH62ZGW
    PDgcAgsVTpH62ZGW
    vHBBAXk3assxZTqy
    GU44TpMHcULCkI6X

    • Start by unplugging the cable for display.

  5. PwAufO5RXBvSQ5Ok
    PwAufO5RXBvSQ5Ok
    OJkwFdEdukleoG6p
    HaEtL25OoVjetyWl

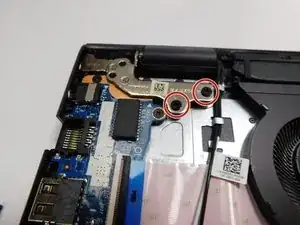

    • Remove the 1 mm screws in red circle with Phillips #0 screwdriver.

  6. QxyxaQqMuNlFqooO
    QxyxaQqMuNlFqooO
    wQVRLwq5FjkGInq3

    • Remove the 1 mm screws holding down the metal bracket in red circle with Phillips #0 screwdriver.

  7. swqUkdmpISJQgtd1
    swqUkdmpISJQgtd1
    BEWrmZAKNPe334Ki

    • Unplug both the white and black wire

    • The black wire is marked in red.

    • The white wire is marked in orange.

  8. dP3tpsinkt1FGF4n
    dP3tpsinkt1FGF4n
    CgxMhhUIgD5InEBK
    pEUGJtQ4fBe2XTTc

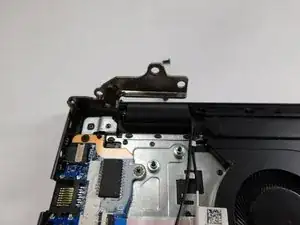

    • Lift up the hinges circled in red.

  9. NfJJcsqdU5foTtmA
    NfJJcsqdU5foTtmA
    XV4UqucTfCCdTuSB

    • Hold it at a angle and then it should slide off.

Conclusion

To reassemble your device, follow these instructions in reverse order.
