Fairphone 4 Charging Port Replacement

Written By: Manuel Haeussermann
  • Comments: 4
Fairphone 4 Charging Port Replacement

Difficulty

Easy

Steps

12

Time Required

25 - 45 minutes

Introduction

Use this guide to replace the charging port in your Fairphone 4.

  1. IZiZiekpwsw1ZZQ1
    IZiZiekpwsw1ZZQ1
    YuF1pGqCbIOZ2EEe

    • Be sure to power off your phone before you begin.

    • Insert your thumbnail, or a prying tool like a spudger, into the notch at the bottom right of the back cover.

    • Pry the back cover up to start separating its plastic clips.

  2. s1wWZCXSZkQr1Zsl
    s1wWZCXSZkQr1Zsl
    6UWRDSpaKfnoMcmv
    n2lDPKWglBUxWrhX

    • Using your thumbnail or an opening pick, slide along the right side of the phone to loosen the plastic clips.

  3. SEBkuuHe4FMXMxUc
    SEBkuuHe4FMXMxUc
    kBJSAQPsCpbJx6cF
    4DM3tdBSvuEsclVN

    • Slide along the bottom of the phone to loosen the plastic clips.

  4. jkWp61XqnGKWViuj
    jkWp61XqnGKWViuj
    DDYUhYDnLoCQ6FgA
    G4yKxBVRmZnek2Gg

    • Slide along the left side of the phone to loosen the plastic clips.

    • Lift the back cover to release the rest of the plastic clips and remove it.

    • To reinstall the back cover press it firmly into place until you hear a snap from the plastic clips.

  5. JPdxUZBdrS1vWTe5
    JPdxUZBdrS1vWTe5
    4T6nYgpqxDKBEgJO
    LBR3NbQqfKPJlcrR

    • Use a fingernail or a prying tool at the marked notch to lever the battery out of its recess.

    • Lift the battery out of its recess and remove it.

    • Remove the battery.

    Thank you for this very helpful guide. However I fail to see why you would conclude that replacing the battery is 'moderate'. Could you elaborate on this a little bit more, please?

    For me 'moderate' means it is (very) complicated (i.e. plenty of steps) but feasible in general (i.e. there is a good chance you're not gonna brick your device) for which there is only one escalation level left: 'not feasible at all'. Non of that is true for the FP4. Could removing the battery more user-friendly, though? Well yes, of course but it is still by far very simple and straight forward.

    Again, thank you very much for this great contribution.

    Dave S. -

    Hey Dave S.,

    thanks for your comment. You're totally right, the "moderate" rating was due to an oversight as it is the default in the system. I've changed the rating.

    Manuel Haeussermann -

  6. WJtA3V4nMQFJCf1Y

    • Remove the six 4.8 mm-long Phillips screws.

  7. EomksV5CZIEojsB4
    EomksV5CZIEojsB4
    JSOoIoFpCpjDp6Sy

    • Use an opening pick to slide beneath the loudspeaker.

    • Slide the opening pick to the right side of the loudspeaker to release the clips that hold it in place.

  8. iPoSMNxtxd5Dmdmi
    iPoSMNxtxd5Dmdmi
    SfNu2vPUrIF1vLZV

    • Slide the opening pick to the left side of the loudspeaker to release the clips that hold it in place.

    • Twist the opening pick to lift up the loudspeaker.

  9. 2B1GH4fCLmHdBBKP
    2B1GH4fCLmHdBBKP
    rwSumvWgiWfjGkZT

    • Grab the loudspeaker and flip it towards the bottom to remove it.

  10. iCLDLdYKbVaT2GiB
    iCLDLdYKbVaT2GiB
    SOdQFOOuwcvtILol

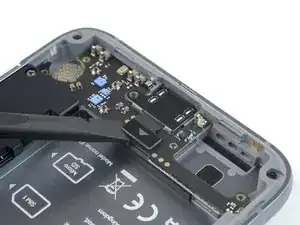

    • Use a spudger to disconnect the charging port by prying the connector straight up from its socket.

  11. EF4jcP3Pc41cCoDT
    EF4jcP3Pc41cCoDT
    OWQKSLENKFUFDN2F
    kckS3IPGfObfPvlT

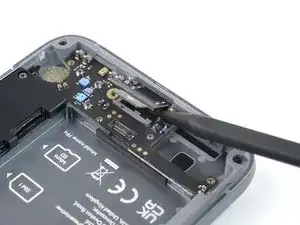

    • Use the pointed side of the spudger to lift the charging port out of its recess.

    • The small cutout visible on the opposite side of the charging port screw hole can be used to insert the spudger.

  12. 6x11pebsqDLsXPtq
    6x11pebsqDLsXPtq
    mUIGxWuWfLIgk5Yu

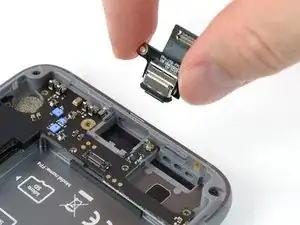

    • Grab the charging port and remove it.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.

Author

Manuel Haeussermann

Member since: 13/07/22

16160 Reputation

2 comments

Der Tausch war sehr einfach mit eurer Anleitung und der USB-C Anschluss funktioniert wieder einwandfrei, besser als zuvor sogar.

Ich hatte von Anfang an Probleme mit dem USB-C Anschluss und vermute dieser war bereits fehlerhaft montiert. Die Konnektivität wurde immer schlechter, nur bestimmte Ladekabel funktionierten noch. Säubern hat nichts gebracht. Nach dem Wechsel funktionieren wieder alle Kabel bzw. Stecker und klicken richtig an. Das war vorher nie so.

Bei den ganzen Problemen und dem Verschleiß von USB-C Buchsen ist es schade dass Fairphone sich wegen der schlechteren Effizienz immer noch gegen QI-Charging entscheidet. Es könnte die Lebensdauer von Ladeanschlüssen verlängern. Ich denke das sollte man hinsichtlich der Nachhaltigkeit mehr berücksichtigen.

Muto -

My phone only charged with some of my known good cables. It's 2 years and a couple months old.

The fix was very easy. probably not even 25 minutes. Only the screws didn't want to come out after unscrewing, They came out with carefully removing the speaker assembly, knowing the screws are loose. I also removed dust from the speaker while in here.

My phone charges normally again.

amelore -
