Flip Video Ultra USB connector Replacement

Written By: Nathaniel Ruf
  • Comments: 2
Flip Video Ultra USB connector Replacement

Difficulty

Moderate

Steps

11

Time Required

15 minutes

Introduction

This guide will walk you through how to remove and replace the USB connector should your device be broken or malfunctioning.

  1. GB5jHgNIWCDbDEng

    • Unlock the battery cover by sliding the switch to the unlock position.

  2. 4cEhXDAjcTFJ23Fq

    • Remove the battery cover by sliding it down the camera.

  3. fhWjWiiveQf4pYJ1

    • Remove the batteries.

  4. HuMM6Q15KVtIYq6o

    • Slide the black upper casing off from the device.

    • This is a bit hard to get off, so don't be afraid to use a bit of force. There is no lock.

  5. snNjoCRoJWaaukar
    snNjoCRoJWaaukar
    exEsQsX1jUs4ISIx

    • Remove the six 1mm screws from front of the camera with the Phillips Head screwdriver.

  6. UXFmvbvbfrlOHAZQ

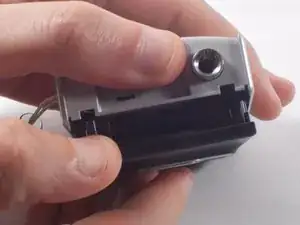

    • Remove the top casing from the bottom to reveal the inner circuit board.

  7. tGWTSPPU4mOtcvUp
    tGWTSPPU4mOtcvUp
    U4LhTuKOADqESCnq

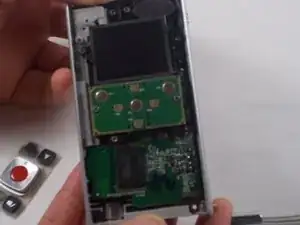

    • When removing the back panel, the rubber buttons will become loose and likely fall off the board. This is normal and can easily placed back on the board once finished.

    • Remove the six 1mm screws with the 1 Phillips head screwdriver.

  8. NDDbwIDVThCN4Wtw
    NDDbwIDVThCN4Wtw
    YanVDdyHM5tPDm1J

    • Gently separate the circuit board from the casing.

  9. TDEJskTxArAJ6sqT
    TDEJskTxArAJ6sqT
    jgrUZHDFPIkDpyfa

    • Remove the three 1mm screws from the USB connector and back casing with the Phillips Head screwdriver.

  10. JmF123RjcK5eRrAx
    JmF123RjcK5eRrAx
    Y4NTt2xusNqElcol

    • Gently lift the usb connector using the Plastic opening tool.

    • Using tweezers, remove the cord from the motherboard by gently lifting the connector.

    • The connector will be easier to remove if you wiggle the tweezers while lifting.

  11. nqHuOhsMKxilcwls

    • Fully remove the USB connector and replace it with the new USB connector.

Conclusion

To reassemble your device, follow these instructions in reverse order.
