Game Boy Color LCD Display Replacement

Written By: Ajmal Puyehgar

Comments: 13

Difficulty

Easy

Steps

Time Required

50 minutes

Introduction

The LCD Display is the screen that displays images from the Game Boy Color. This guide details how to disassemble and install an LCD Display.

Tools

Step 1

Locate the battery compartment on the back of the Game Boy Color.
Push down on the tab and hinge the cover downwards and outwards to remove the battery cover.

Step 2

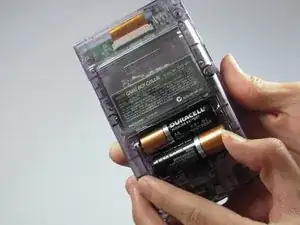

Remove the batteries from the battery compartment.

Step 3

Using a Y1 screwdriver, remove the six screws on the back of the device as pictured. The bottom two screws are located inside of the battery compartment.

I did this with a Y0 bit. It works if you are careful. I wouldn't recommend it on other consoles but for this tiny thing, it works.

phnome -

The guide says a Y0 is needed. Is it a Y1 or Y0?

Trav -

Step 4

Gently lift and separate the back housing from the rest of the device. Now you've got the back housing out!

Step 5

Push up on the tabs on either side of the ribbon with a spudger.

Step 6

Gently remove the ribbon cable from the port

Step 7

Using the Phillips #1 screwdriver, remove the 3 screws shown in the picture.

It’s not mentioned here, but be sure to unplug the LCD flex cable at the top of the motherboard before removing the motherboard. To do so, gently press the clips on either side of the receptacle toward the top of the Game Boy. When they are both pressed up, the orange cable will slide freely out

Ben Perkins - 30/09/18

Thanks Ben. That's a very good point. Just ripping it out will cost you a couple bucks, not to mention your Gameboy will not work until you replace that ribbon cable.

Chris Pavlik - 07/10/18

Step 8

Gently lift the motherboard from the front housing.

Step 9

Gently pry and lift the LCD Display from the front panel.
Twisting the front casing may help gain more leverage.

if there is any adhesive, you can take off the foam, then put 90% isopropyl alcohol (rubbing alcohol) on it, and it will loosen the adhesive on the screen display, making it easier to take it off.

Rocketgirlygirl - 15/01/21

Pretty sure you need to take the front cover off first?

Dimarnae Deveau -

Conclusion

To reassemble your device, follow these instructions in reverse order.
