GameSir G7 SE Joystick Module Replacement

Written By: AJ Saks
  • Comments: 0
GameSir G7 SE Joystick Module Replacement

Difficulty

Moderate

Steps

6

Time Required

No estimate

Introduction

Addressing joystick wear or malfunction, this guide assists GameSir G7 SE owners in replacing their joystick modules. Common symptoms that necessitate this repair include drifting, sticking, or unresponsiveness, affecting game control accuracy.

Disconnect the controller from all power sources before beginning the repair to ensure safety. Troubleshooting page sections such as “Joystick Drift” or “Sticky Joystick” might offer additional insights before you start.

  1. gMT2OWRFEieAKaIw

    • Remove the faceplate by prying upwards with a plastic opening tool.

    • This faceplate is magnetic and will be easy to come off.

  2. iPFL14icDv16tSww
    iPFL14icDv16tSww
    JjwaTPMDqA4nXZUT

    • Use a T6 Torx Screwdriver to remove the six 9 mm screws from the interior face plate.

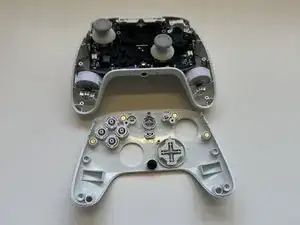

  3. LFnmCOeCIKxX1CxM
    LFnmCOeCIKxX1CxM
    xP6LnxPraYmECDmQ

    • Using a plastic spudger tool, remove the interior face plate. Go around all the edges, prying downwards until it's removed.

    • Make sure to hold the controller upside down; otherwise the buttons will fall out.

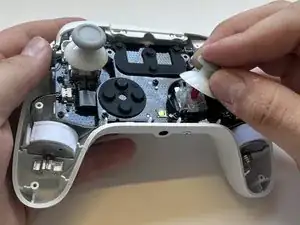

  4. ZmlHH5GyBVHLLD4j

    • Remove the plastic joystick that is covering the joystick module by pulling up on from the gray grip.

  5. J5hVcmX2OpDmRqiP

    • To gain access to the joystick module, you will need to gently bend the metal retention clips that hold the module in place.

    • Use a plastic spudger to gently bend the retention clips back.

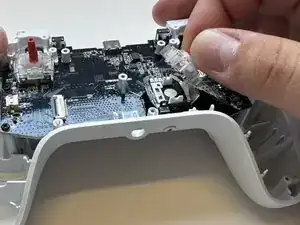

  6. lGxDM1aIPbSrWRwv

    • Pull directly up on the joystick module to remove it from the motherboard.

    • Make sure to hold the joystick module from the red portion to prevent it from falling apart.

Conclusion

To reassemble your device, follow these instructions in reverse order.
