Introduction
This guide will show you how to dismantle the top part of your Gardena EasyCut
-
-

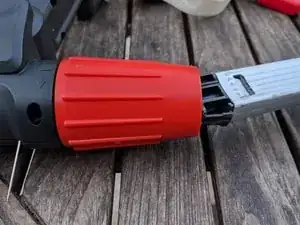

Insert a needle into the small hole
-
At the same time pull on the metal part, take it out.
-
Then pull the red ring to remove it
-
-
-

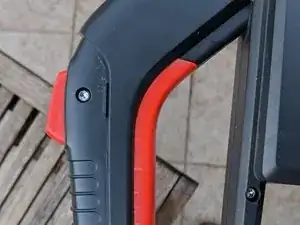

Remove all the screws,
-
including the 2 hidden under the black plastic handle
-
Be careful the springs will easily escape
-
Conclusion
To reassemble your device, follow the instructions in reverse order.
