Google Pixel 5a Screen Adhesive Installation

Written By: Chayton Ritter

Comments: 9

Google Pixel 5a Screen Adhesive Installation

Difficulty

Moderate

Steps

Time Required

20 - 30 minutes

Introduction

This repair guide was authored by the iFixit staff and hasn’t been endorsed by Google. Learn more about our repair guides here.

Follow this guide to correctly apply screen adhesive to your Google Pixel 5a after a repair.

Before you begin, you should have already removed your Pixel’s screen and set it aside. Detailed instructions for this can be found here.

This guide was written using a Pixel 5. There will be some visual discrepancies, but the adhesive installation procedure is the same.

Tools

Parts

Google Pixel 5a Display Adhesive - Genuine

Step 1

Peel off as much adhesive as you can with a pair of tweezers.
Use a spudger to scrape away any lingering adhesive.
Don't use metal tools to scrape away adhesive as this will damage the frame.
For best results, clean the area underneath the removed adhesive with 90% or greater isopropyl alcohol to prep the surface for the new adhesive.

This part was strangely frustrating, not matter how much I poked or tweezed I couldn't seem to get the old stuff to come off... but finally using the pointy end of the spudger I got just the right angle to loosen under a nice chunk and then I was able to use the tweezers to pull pretty much all of it off in one satisfying strip. It's attached to plastic underneath and you really can't ruin what it's resting on with the spudger but with the adhesive all still in place I wasn't certain what I was looking at and I was afraid to try too hard.

Determined, but distracted -

Step 2

Repeat the previous step for the screen adhesive.
Don't use metal tools to scrape away adhesive as this will damage the screen.
Don't use isopropyl alcohol near the front camera bracket as it will loosen its adhesive.

Step 3

Use the front camera and corners of the frame to correctly align the adhesive.

Step 4

Peel away the clear plastic lining to expose the frame side of the adhesive.

Step 5

Be very careful during this step! The adhesive is very sticky and can't be repositioned once it sticks. Misaligned adhesive can lead to an improper seal.
Lower the adhesive onto the frame.
Use the front camera and corners to help align the adhesive during installation.

This clearly does not work. The adhesive is stuck to the clear plastic and wont come off.

You included a gel pouched that needs warmed. Is that relevant to this step? Its not mentioned here...

Ran Vaknin -

Step 6

Use the flat end of a spudger or your fingernail to press down on the adhesive.
Slide along the perimeter to secure the adhesive to the frame.

Step 7

Use your fingers to grasp the blue plastic lining near the center and peel it away from the phone.
This should leave a thin perimeter of adhesive still covered by blue plastic lining.

The final protective layer of plastic came off with the blue sheet when I did this step, but I was able to work around that by keeping a piece of stiff plastic over the edge of the phone as I struggled to connect the screen cable.

Determined, but distracted - 16/07/23

Step 8

Follow the screen replacement guide in reverse order and connect the screen to your pixel.
Remember to reinstall the screen connector bracket.
If you replaced the screen, check the screen's front-facing camera hole and remove any protective liners covering it.

This step took forever. Had to hire someone to do it because I was struggling for almost an hour, and even he had trouble with it.

I also want to echo what someone else said in the original screen tutorial: make sure you remove the plastic with the red flap from the front facing camera lens on the new screen. There are two temp adhesives to remove for that one.

ccc - 29/06/23

Step 9

Peel away the blue plastic lining to expose the perimeter adhesive.

I waited to peel the final strip till i had the screen in position but not clicked down.

This minimized the chance of dust.

I did have to pull just the beginning of the tab so it was peeking out before resting the screen down like that.

Stephen Cass -

Step 10

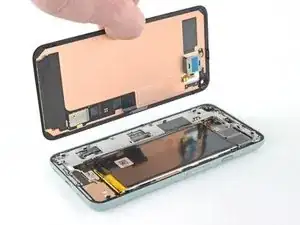

Position the screen so it lays on the frame.

Step 11

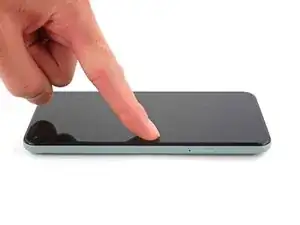

Press down the corners of the screen to secure them to the frame.

Step 12

Press down on the edges of the screen.
Slide along the perimeter to secure it to the frame.
You can heat the perimeter of the screen to soften the adhesive and help it bond more securely.
