HMD Pulse Back Cover Replacement

Written By: Spencer Day
  • Comments: 0
HMD Pulse Back Cover Replacement

Difficulty

Moderate

Steps

15

Time Required

10 - 20 minutes

Introduction

Follow this guide to replace a cracked or damaged back cover on your HMD Pulse smartphone.

  1. yjiVglEySYXSEEUH

    • Let your phone's battery drain below 25% before starting this repair. A charged lithium‑ion battery may catch fire if damaged.

    • Unplug all cables from your phone and completely power it down.

  2. VQ2XTFSdWPyxIYSH
    VQ2XTFSdWPyxIYSH
    KcSRFYDyNIOA24EH
    MYPTW4SmTkBVLaip

    • Firmly press a SIM eject tool, bit, or straightened paper clip into the SIM card tray hole on the left edge of your phone until the tray ejects.

    • Remove the SIM card tray.

    • During reassembly, use the tray's markings to orient and reinsert it properly.

  3. 6MPN6HAoaJnMyGp4
    6MPN6HAoaJnMyGp4
    ldLaKK5AwfZ5Lu24

    • Insert the tip of an opening pick between the back cover and frame, at the SIM card tray cutout.

  4. nRAAoHrroh5koiF1
    nRAAoHrroh5koiF1
    xxLtuYjxIwIpuDqR
    gLRwvVvXUBnTYoll

    • Position the opening pick straight down and slide it along the left edge to begin unclipping the back cover.

  5. CWFAAu5sb2OWIQ6N
    CWFAAu5sb2OWIQ6N
    MTiEIhZeqRENG3pB
    bsQYximLKu5HIuDJ

    • Continue sliding the pick around the perimeter of your phone until the back cover is fully unclipped.

    • The corners can be tricky to unclip and may take some force. If you're having trouble, try prying up with the pick.

    • Don't try to fully remove the cover yet, as a delicate cable still connects it to your phone.

  6. wdKfeBbKTeGQhTwx
    wdKfeBbKTeGQhTwx
    GGrANY1YqmMcSDnr
    Ldk3QiSaHAdqPAkT

    • Carefully flip your phone over so the back cover is facing up.

    • Lift the back cover off the frame and flip it over the left edge of your phone, laying the cover flat on your work surface.

    • Be very careful not to strain the back cover's delicate cable.

    • During reassembly, place the back cover onto the frame and firmly squeeze around the perimeter to reengage all the clips.

  7. OQklXUC4SLaJTZwB
    OQklXUC4SLaJTZwB
    nWHilWycIshpVfFs

    • Be very careful not to puncture the battery with your screwdriver.

    • Use a Phillips screwdriver to remove the nine 3.6 mm‑long screws securing the motherboard cover.

    • The screw near the center of the top edge is covered by a sticker. Pierce through it with your screwdriver, or use tweezers to remove it.

  8. EfePFqdDo5UACwVR
    EfePFqdDo5UACwVR
    uulNPmeyhAAVPmkS
    KWIY4ByIZtUhPCMj

    • Insert an opening pick between the right edge of the motherboard cover and frame.

    • Twist the pick to fully unclip the cover.

  9. wwqvqPcYK3AJCfUs
    wwqvqPcYK3AJCfUs
    XSijYtLIP2gEWP2o

    • Remove the motherboard shield and its connected graphite sheet.

    • During reassembly, set the motherboard shield into place and press down firmly around the perimeter to reengage the clips.

  10. klMGnvivn2xa4txI
    klMGnvivn2xa4txI
    iRVAsmiqDH2DZcHU

    • Use the flat end of a spudger to pry up and disconnect the battery press connector from the bottom edge of the motherboard.

    • To reconnect these type of connectors, align the connector over its socket and press down with your fingertip—first at one side, then the other—until it clicks into place. Don't try to force the connector into place, or you may permanently damage it.

  11. wSRhFJpItNtO3R4x
    wSRhFJpItNtO3R4x
    6AckuLlJ6jQQLl3X

    • Use the flat end of a spudger to pry up and disconnect the back cover press connector from the bottom edge of the motherboard.

  12. 2douZZTJGn4SxPYW

    • Remove the back cover.

  13. rpDNjEXIkvYTXGpq
    rpDNjEXIkvYTXGpq
    Krqaq1iV4XmghWEx
    AIUXm1jAXxCLBAni

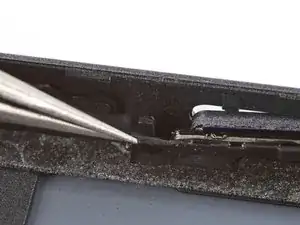

    • If your replacement back cover doesn't come with a power button pre-installed, follow the next two steps to remove and transfer it.

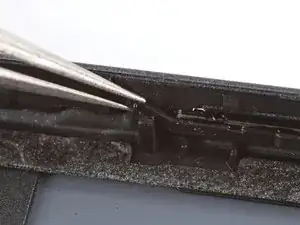

    • Use a pair of tweezers to gently grip the power button's top rubber arm and lift it out of its slot.

  14. UI2HoXMyRNZ4dcq4
    UI2HoXMyRNZ4dcq4
    4KjKeFkJGW1OjQq6

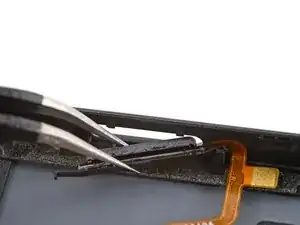

    • Use tweezers to lift and remove the power button.

    • Installing the power button can be very tricky and may take a few tries. First, insert the bottom rubber arm and cable together into their slot and push the button into its cutout. Then, slide the upper arm into its slot.

  15. xvo3SnQn6pKGtVQV

    • You're left with the back cover.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.
