Introduction

Use this guide to replace the Wi-Fi card in a HP 15-g029wm.

  1. L1mvMIFD6dnsx3wE
    • Unplug any charging cord or accessories connected to the device before beginning.

  2. HYZNZDhWbgAZ1XIu
    • Place the laptop bottom-side up on a secure, flat surface.

  3. rfcESNBDQb4GSsBF
    rfcESNBDQb4GSsBF
    cRy6FhROsYRmCcUD
    FWCI6xnnLvyrHceD
    • Slide each of the two switches that secure the battery to the left.

    • This will reveal an image of an unlocked lock.

  4. KOCkBxLGybMC4nE3
    KOCkBxLGybMC4nE3
    URF1YoapUg1W1jPL
    QmfALseeldUZxHAg
    • Use your hands to gently pull the disconnected battery out of the device.

    • When inserting the new battery, pay special attention to align the battery connections correctly.

  5. fxrPI2lK1sHoUnD6
    fxrPI2lK1sHoUnD6
    V6DJI1mqtVwRBfyJ
    • Remove the following Phillips screws on the lower case:

    • Nine 5 mm

    • One 6 mm

    • This will allow the optical drive to separate from the chassis.

  6. hmLh6OVxAUViBe1N
    • Slide the optical drive directly out of its slot.

  7. OctAX5ORKpnZQXuX

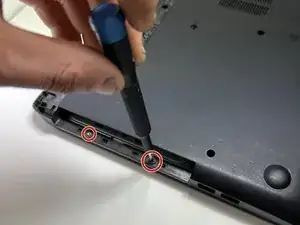

    • Remove the two 2 mm Phillips screws on the lip of the optical drive slot.

  8. EPLBcSQHGXbfEb5P
    EPLBcSQHGXbfEb5P
    mloYwQqEXRMEbXSI
    5KRylwOEaB41QsEM

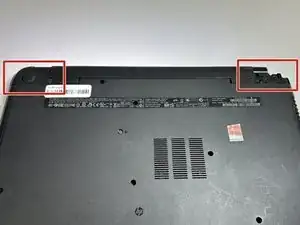

    • Use an opening pick to remove the two rubber feet near the laptop hinges.

    • Remove both of the 8 mm Phillips screws.

    • The screws were hidden by the rubber feet.

  9. xuGcKWLIa4wSDmvm
    xuGcKWLIa4wSDmvm
    coVNRRDorK2A2KqV
    • Use an opening pick to pry up and remove the left hinge cover.

    • Use an opening pick to pry up and remove the right hinge cover.

  10. NKKDHWni124Q2FqM
    NKKDHWni124Q2FqM
    UaaL2XDevmsEV2FM
    YJgLJ6NZoGaadNfJ

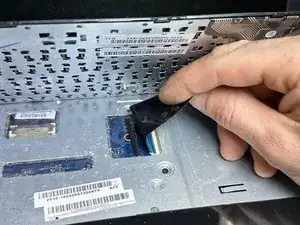

    • Flip the device face up and open the lid.

    • Insert an opening pick under the keyboard and pry around the perimeter of the keyboard until it fully releases.

    • Lift the keyboard slightly.

    • There is a ribbon cable connecting the keyboard to the device on the underside. Do NOT pull it away or you risk ripping the ribbon cable and causing damage.

    • Use your fingers or an opening pick to unlock the ZIF locking flap that secures the keyboard ribbon cable.

    • Disconnect the keyboard ribbon cable.

    • Lift the keyboard off.

  11. JccwEOU4ykyRDHFS
    JccwEOU4ykyRDHFS
    bFXCW5oAIEv1epbQ
    TVLDtmDJEAqKPbch

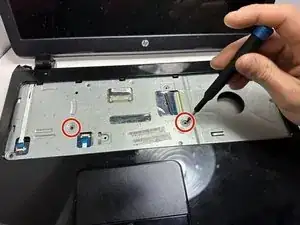

    • Remove two 5 mm screws using a Phillips screwdriver.

    • Insert an opening pick in the seam between the top case and chassis.

    • Slide the opening pick around the edge of the device to separate the top case from the chassis.

    • Slightly lift the top case up and away from the chassis.

    • There is a ribbon cable connecting the top plate to the device. Handle with care, and do NOT yank on the ribbon cable to prevent damage.

  12. CofZwsRSxUeNMDPe
    CofZwsRSxUeNMDPe
    jSZWpDfjCQ1qxxPI
    WTZUCJ1gUMFIcSHO
    • Use your fingers or an opening pick to flip up the black ZIF locking flap.

    • Disconnect the ribbon cable.

    • Lift off the top case.

  13. bDed6dZkSsUcJF1y
    bDed6dZkSsUcJF1y
    tIYA3EcwQdED1IRY
    • Use the tip of a spudger to pry up and disconnect the two antenna cables attached to the wireless card.

  14. jyw44fwZILBjnvgq
    jyw44fwZILBjnvgq
    XH5sQxNPmOCXdayE
    f3RFpR4MAXWhkh4H
    • Remove the single 3 mm Phillips screw that secures the wireless card.

    • Pull the wireless card out of its socket.

Conclusion

To reassemble your device, follow these instructions in reverse order.
