Hoover Power Path Pro Advanced Suction Motor Replacement

Written By: Jose Andres Gonzalez Valdes

Comments: 11

Hoover Power Path Pro Advanced Suction Motor Replacement

Difficulty

Very difficult

Steps

Time Required

40 minutes

Introduction

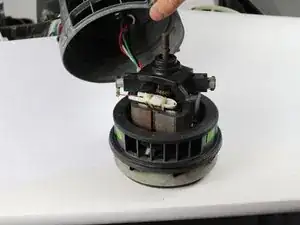

The suction motor is at the core of the proper function of any household floor cleaner. This guide will demonstrate how to properly replace a broken suction motor.

Tools

Phillips #2 Screwdriver

Step 1

Unplug the vacuum cleaner from the wall outlet before starting. Make sure the water tanks are empty.
Lay the cleaner down horizontally with its wheels closest to the floor.

I have to rollers on mine.

poco24 -

I have two rollers on mine.

poco24 -

Step 2

Hold the lower brush roll with both hands and pull outwards until it is detached.

Step 3

Unscrew the 6 marked screws using a Phillips #2 head screwdriver.
Remove the brush roller.

Removing long roller brush is not required and can’t be done at this point because of belt.

frank wilbanks -

Yuck!! I want to clean the transparent curved surface. I can’t get at it.

jmariep -

Step 4

Use a long #2 Philips head screwdriver to remove the 8 numbered screws on the bottom of the cleaner.

The 8 screws are not all shown here. There are arrows with numbers pointing at all of them on the dark plastic. The two shown here in red are labelled on the clear plastic.

jschaudt -

Step 5

Pull the red handle shown to remove the front suction unit from the cleaner.

Step 6

Unscrew the Phillips #2 screw at the bottom of the hose.

Step 7

Push down on the handle release button. Pull and disconnect the edge of the top cover on the side of the handle release button.
Repeat the above step for the "On/Off" button.
When pulling the handle release button, make sure the top of the cleaner does not fall.

What a load off bollocks following this instruction broke my Hoover

Stewart Hogg - 03/04/21

I followed your instructions and after pressing the release button and the start button erasing the clips broke my Hoover as it's not as easy as you

Stewart Hogg - 03/04/21

It is impossible to remove the top cover...!!!!! I'm breaking the vacuum!!! you need to give better instructions!!!

Zulma Ossandon -

This guy forgot about removing the entire underside first...also snapped off a plastic screw casing. Bollocks is correct. There should be 10 or 11 steps. Take off the bottom casing, about 7 screws I believe.

Jane Blevin -

Step 8

Gently grab the belt and pry it off from the rollers.

Step 9

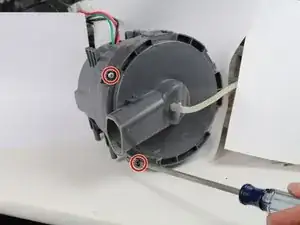

Unscrew two screws using Phillips #2 screwdriver.

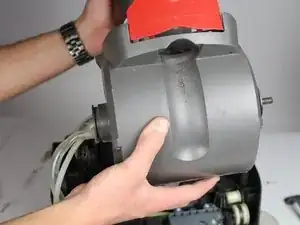

Detach grey piece from vacuum.

Step 10

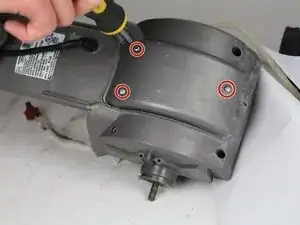

Unscrew four screws using a Phillips 2 screwdriver.

How to remove electric on/off switch cover is not mentioned. To keep from breaking cover by prying, drill about a 3/8” hole through plastic cover lined up with partially hidden screw and remove screw. To drill a smoother holed use reverse (CCW).

frank wilbanks -
