Introduction

The Holga 120N camera (model number 144120) was made in the 1980s, making it prone to natural wear and tear. When the shutter overextends, it can prevent the camera from taking a picture. An easy solution is adding a spade terminal as a block to the overextended shutter, allowing the camera to take pictures again. This is a job that doesn’t require expertise on the Holga film camera’s body, and the only tools required are hot glue, a Phillips screwdriver, scissors, and a boxcutter/exacto-knife.

This guide will teach you how to take the camera apart, insert the spade terminal, and seal the camera back up again.

  1. ZNPuvENr5RUOuHLc
    ZNPuvENr5RUOuHLc
    d1MeQ5fuv1S5tEgf
    • Slide the two metal lanyard locks up and off the camera.

    • Pop the back of the camera off.

  2. 5shcRhLpAcQHeqId
    5shcRhLpAcQHeqId
    A1gYmOSZ3YUOOySm

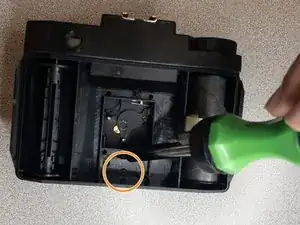

    • Remove the screw above the opening to the shutter piece using a Phillips #00 screwdriver.

    • Remove the screw below the opening to the shutter piece using a Phillips #00 screwdriver.

  3. V2EkVZJg2Vv6cBWc
    • Pull the shutter piece out and away from the camera.

    • Pull the shutter piece away carefully to avoid snapping the wire.

  4. CQPWhrWb2KZdLN6X
    CQPWhrWb2KZdLN6X
    JKx6WYCCBXD3dQha
    MPCQcRlQsjJhbROZ

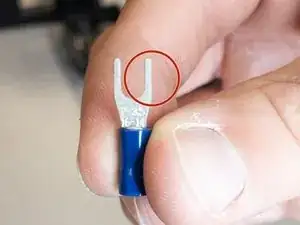

    • Cut off the spade terminal's right prong with scissors.

  5. 2nE6ate2XfMvrI2F
    • Bend the spade terminal forward at a 90-degree angle.

  6. OPTkKoNBiTTbSx1E
    OPTkKoNBiTTbSx1E
    y1P3tdUrTpp1E2Vi

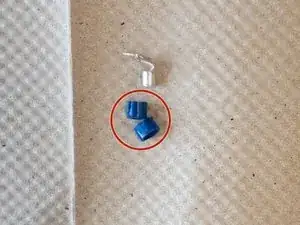

    • Slice the blue plastic off of the spade terminal with the boxcutter/Exacto-knife.

    • The plastic bottom is sealed on very tightly. Use caution when cutting it away!

    • Remove the plastic from the spade terminal.

  7. xiAPUwMlbLUApSW3
    xiAPUwMlbLUApSW3
    ddN2orYWJ255pHjK
    CQ6YcKBKRhROjCrZ
    • Place hot glue at the bottom of the spade terminal.

    • Place the spade terminal in the small hole underneath the shutter.

    • Point the spade terminal horizontally, facing the wire that leads back to the camera.

  8. p5DFYphUu3NLUQOb
    • Screw the shutter piece back into place using a Phillips #00 screwdriver.

  9. P5MjrofMPRfeDHRV
    P5MjrofMPRfeDHRV
    uw6lPpq6nAKGqIqV
    • Return the back of the camera into place.

Conclusion

You’ve now learned the following:

  • How to disassemble and reassemble a Holga 120N camera
  • How to add a spade terminal as a blocker

The spade terminal will stop the overextended shutter. Enjoy taking pictures!

Jacob DeLany

Member since: 28/09/21

169 Reputation

One comment

That's a PZ1 bit which gets the screws out easily. If you got the screws out with a PH00 bit, either they changed the way the camera is made before mine was made or you are quite tenacious in your screwdriving.
