How to Repair a Christmas Tree Light Wire

Written By: Javi Becerra
  • Comments: 0
How to Repair a Christmas Tree Light Wire

Difficulty

Moderate

Steps

11

Time Required

30 - 45 minutes

Introduction

Don't let a broken Christmas tree wire ruin your Christmas spirit. In this guide you will follow step by step instructions on how to save Christmas by repairing your broken Christmas tree wire.

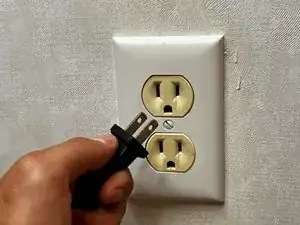

  1. OkKXdQTY2dytKJtp

    • Unplug the lighting.

  2. JB1UikJRQSr6cQUj
    JB1UikJRQSr6cQUj
    6VA6YyTIDZObVuAj

    • Using the wire strippers, split both wires apart approximately one inch.

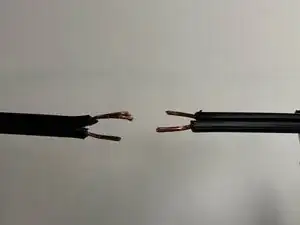

  3. S6JApnDtND4ln2ZN
    S6JApnDtND4ln2ZN
    EjpNHjAXKWINnIRg

    • Using the wire strippers, strip about an inch of insulation off of each wire.

    • Use appropriate wire gauge when stripping. A good practice is to start with large gauge and work your way down.

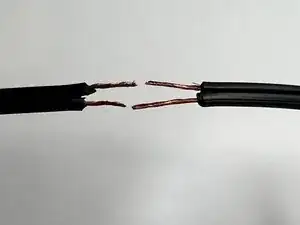

  4. GmLVdkvOtRgKMD46
    GmLVdkvOtRgKMD46
    hRp3T1hZPmqnqWSc

    • Twist all four copper strands.

    • This will make it easier to work with and help prevent fraying.

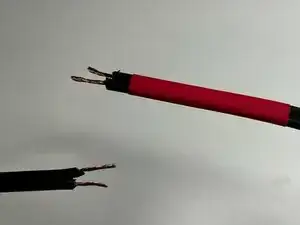

  5. yryCwScsRKvWuvSB

    • Insert the heat shrink tubing on the longer end of your wire.

    • Once the heat shrink is on your wire, slide it out of your way. We will address the heat shrink in Step 9.

  6. isJHMqC6jVtqpEsS
    isJHMqC6jVtqpEsS
    mmx3r33Hn1JYaRgh
    e3rbCKWHvFwV1kHM

    • Cross and twist the wires together to create a connection.

    • This helps the wires form a better connection when soldering together.

  7. OBhAZwJSt5udxnJZ
    OBhAZwJSt5udxnJZ
    HYHC4nWAV45MOVTM

    • Solder your wires together by applying heat to the bottom of your wires and solder to the top. The solder will melt onto the copper strands solidifying both wires together.

    • Burn and fire hazard. Take appropriate precautions and solder in a well-ventilated area.

    • Pre-heat soldering iron to 325 Fahrenheit.

  8. HmWZfxETGV4kGtBO

    • Use electrical tape to wrap the soldered wires.

    • This will prevent both wires from contacting each other.

  9. rSkwOEFwLwXYfFJ2

    • Slide the heat shrink over the soldered wires.

  10. mLdag5KN6fovOcJg

    • Use your heat source to apply heat to the heat shrink.

    • Burn and fire hazard.

    • Apply heat from heat appliance half an inch away from heat shrink.

  11. DZIpqRpRUrOYeWO1
    DZIpqRpRUrOYeWO1
    agi5BwR2ryBNaOIQ

    • Connect your Christmas tree plug into the outlet.

Conclusion

You've completed soldering and properly covered any exposed wires being worked on. Connect your cable to an electrical outlet; you're Christmas tree is ready to light once again.
