Introduction

Replacing a euro cylinder lock can be a necessary task for homeowners, whether it's due to it being broken or a lost key. However, removing an old euro cylinder lock without a key may seem like a daunting task, especially if you don't have experience with lock mechanisms.

In this guide, we will provide step-by-step instructions on how to remove an old euro cylinder lock from a door without a key by breaking it, making the replacement process easier and smoother.

  1. GqPrW1BxIpaAs6Mv
    GqPrW1BxIpaAs6Mv
    NnofpouAKUef5Hkg
    vsrOSApKOs3lWrNr
    • Most euro cylinders have a weak spot where the tread for the fixing screw is. You can easily break the lock by fatiguing the metal until it snaps.

    • There are ways to protect against this, with p. ex. hardened insterts that hold the lock together.

    • These protections, in contrast to drill protection, are typically only found in high-end security locks, however.

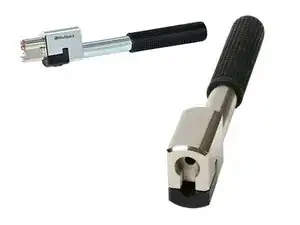

    • Professionals use a tool called a Cylinder Cracker for this purpose. The adjustable clamp adaptor, which features a profile on the inside, grips the cylinder and easily breaks it, even if there's very little overhead (only approximately 2 mm required for high-quality tools) to grab onto.

  2. DJA2cTpVeBrLPaA1
    DJA2cTpVeBrLPaA1
    jrfJTfKsCFBOR3pD

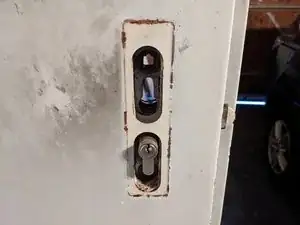

    • In this case you wouldn't actually have to remove the faceplate because the core sticks out enough to grab on to it, but removing the faceplate makes it easier to grab the core.

    • If you have a security faceplate that you can't remove and the core doesn't stick out enough to grab on to, you can't break the lock with this method. You might need to try other methods like drilling the pins out instead.

    • Remove the handle and faceplate.

    • To remove the faceplate, you'll have to remove the handles first. The handle is typically held by a small grub screw somewhere near the base of the handle.

    • If you can remove the faceplate from your side, you can typically see all the screws that you have to unscrew to remove the faceplate.

  3. CJaIahETj3mKpQrR
    CJaIahETj3mKpQrR
    FGGCDeseS3kUQTPx

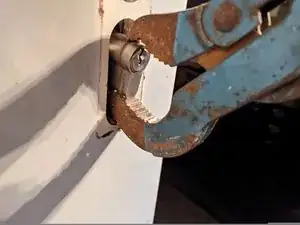

    • Grip the cylinder with a pipe wrench.

    • You may do it vertically, as shown in the picture, or horizontally.

    • Wiggle the cylinder up, down, left and right until you feel the core come loose with a snap.

    • You don't need any large movements, so you can keep them to a minimum to not damage the faceplate, if you still have it attached.

  4. nh3GHcFPIPAAWnVQ
    • Pull out the detached core half.

  5. dCXRBUJwTnGMJtqW
    dCXRBUJwTnGMJtqW
    EwfvHuNUv4QYUrGZ

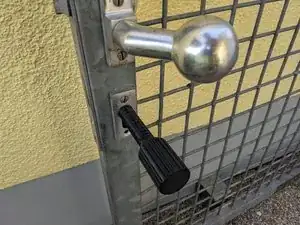

    • Use a construction key to unlock the door, if it is locked.

Conclusion

Having removed the core you can now replace it with a new one.
