How to fix Logitech M171 Mouse Laser

Written By: Maimlian
  • Comments: 2
How to fix Logitech M171 Mouse Laser

Difficulty

Moderate

Steps

8

Time Required

9 - 40 minutes

Introduction

In this guide we will be showing you how to fix your Logitech M171 mouse laser not working

  1. ZWgrliaHElovlVTl

    • Remove the plastic cover at the bottom of the mouse

  2. xwb6XKfV4sUqoWjC

    • Remove the battery and wireless key

  3. GGQYCnNpHybs1Nkh
    GGQYCnNpHybs1Nkh

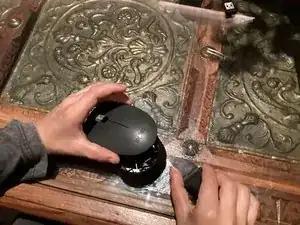

    lo6fURIWq66OCuQD

    • Remove the front cover as show

  4. xKDYvUF3DO6Cm4ny

    • Pull on the sensor to remove it

  5. nryBbRfLix32HDGV
    nryBbRfLix32HDGV
    2wRQUMq5BGUewSsN

    • Clean the sensor with an tissue soaked in alcohol

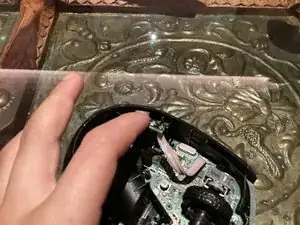

  6. WuECUtCpVJFhBs5O
    WuECUtCpVJFhBs5O

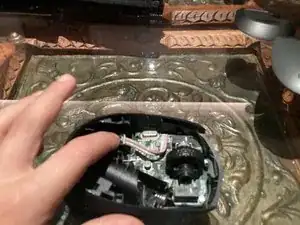

    pWV5leDKBKq2ZU4N

    • Insert sensor as shown

  7. xpwCOJ1aR3kfPAiB
    xpwCOJ1aR3kfPAiB
    XJFYIAgACZEmZLY3

    • Install the front plate put the front plate down on the mouse and push Down until it clips in

    • Install battery and USB key and back cover and you’re done

Conclusion

You’re done Thanks for completing the guide

Author

Maimlian

Member since: 27/01/22

465 Reputation

2 comments

Frying the darker plastic cover open without damaging it is near impossible. I have a problem with my mouse wheel and I don't know how to lubricate it or fix the sensor. Can someone help with that?

Efe Şimşek -

These are bad instructions, the top is released with 3 clips accessible under the battery cover, prising it off from above will break those clips. It can be hard to work out where the clips are and how to release them, but there are 3 one on each side and on under the battery. Aside from that the only other retention is a couple of hooks on the mouse buttons.

Gordon Wrigley -
