Introduction

If you’re having trouble with your Logitech Z130 speakers, this guide will show you how to open them in order to access the internal components.

This guide isn’t intended for a specific repair, only to allow you to open the speakers to diagnose a problem.

  1. CGq1aQcPMkPQ4Xh5

    • Warning: Unplug the device from power before you start!

    • Unplug the audio cable as well

  2. VcOWbVeNHMTcJx4T

    • At the rear of the speaker, remove two screws.

  3. 6sBESsjhSp2iA1Dk
    6sBESsjhSp2iA1Dk
    xCbrpPVTwrDJdSmB

    • Two front screws are hidden by the speaker grid

    • Simply by pulling it, remove the speaker grid

    • Remove the two screws which are now apparent

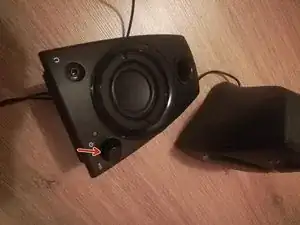

  4. l6cWKOTlnJyD1oVO
    l6cWKOTlnJyD1oVO

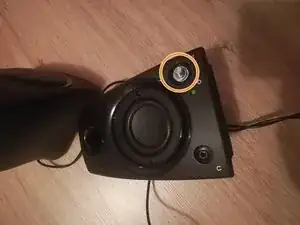

    GHkAXWCZftL4btbO
    wnl6WfocLi1D2wfO

    • Remove the volume button by pulling it

    • Unscrew the nut which is now exposed

    • Remove the nut and the spacer

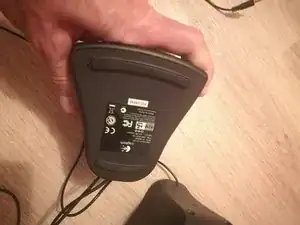

  5. SCvdexT1medbHCog
    SCvdexT1medbHCog
    JJQDxsm2sNnfdwp1

    • Two front screws are hidden by a pad below the speaker.

    • Remove the pad

    • Remove the two bottom screws.

  6. 4DvWPYPuYLcujNrQ

    • Job's done, you are now able to open the speaker by gently pulling the front part of it.

Conclusion

To reassemble your device, follow these instructions in reverse order.
