Introduction
Hello!
Here is a the way you can remove your back cover to access components such as the keyboard, logic board, and camera.
-
-

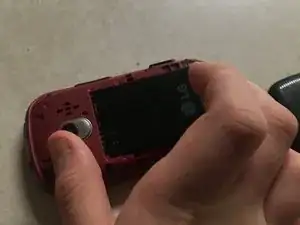

Remove the case on the back of the cell phone by pulling up on the little indent with your fingernail or a Spudger in the bottom of the phone.
-
-
-

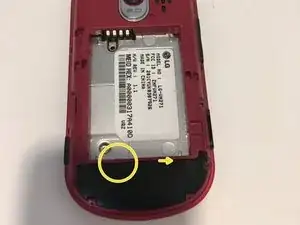

After you pull off the case, the battery is right under it. All you have to do is put you Spudger or fingernail into the indent on the right side of the battery and pull up.
-
-
-

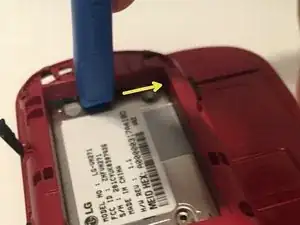

Using the Ifixit Opening Tool, insert it near the small indent, sliding it to the right. then pull towards the outside of the phone.
-
-
-
slide out the keyboard.
-
put your ring finger on the red rim around the keyboard, and your thumb on the model label.
-
push away from the phone with your index finger, and towards the phone with your thumb. there should be a small pop sound, as the casing will slightly pull from the phone.
-
-
-
insert a opening pick or a Ifixit opening tool into the gap your created in the last step, moving to the left.
-
-
-
You should be able to pull the case away, but if you can't still, insert your opening pick or ifixit opening tool into the bottom of the battery slot. Slide your tool to the right.
-
To reassemble your device, follow these instructions in reverse order.
