Jabra Elite 85h Bluetooth Module Replacement

Written By: Ryan Callaghan
  • Comments: 0
Jabra Elite 85h Bluetooth Module Replacement

Difficulty

Moderate

Steps

7

Time Required

No estimate

Introduction

If you are having problems connecting to your Jabra Elite 85H headphones there could be a problem with the Bluetooth module. Follow this guide to correctly disassemble the headsets and repair the module. This guide takes you step by step on how to do it.

  1. Y2yFHrYBWYtaVIra
    Y2yFHrYBWYtaVIra
    IKs2HpyNXeqr5Iub
    cQsButhhBvPNEvWq

    • Remove each ear cushion by hooking your fingers along the inside of the ear cushion and pulling up and away from the ear cup.

    • If the cushion does not fully release, move your hand to the opposite side and pull up inn the same manner.

  2. YpVxMMj2ANGERcmi
    YpVxMMj2ANGERcmi
    mHbVfXI2TAhPNiJj
    mWBgser1ChlOHpnE

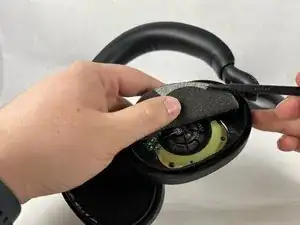

    • The foam inserts and backing tape are very delicate, take your time when removing them and be careful to not rip or tear the material.

    • Using the small plastic spudger to assist, begin lifting up and removing the foam inserts with attached backing tape.

  3. ZJjRHV4VdPaHqDN2
    ZJjRHV4VdPaHqDN2
    GrBbH6kZ6OSjK6C1
    LocYhGlUpdVhhMnr

    • Repeat previous steps on other side.

  4. m6vOAaojuPJLYMf3

    • Unscrew and remove the four T6 screws holding the speaker in place.

  5. Wn2IAfUYtmdPqWhC

    • Tilt the headphones over so that the speaker tilts out of the plastic holder.

    • Repeat for both sides.

  6. wTYBeNrJxuiUfseT
    wTYBeNrJxuiUfseT
    kt5CcuEOXTBmMs6j

    • Remove the two screws holding the upper and lower circuit boards in place.

  7. 3WWGDRIe6GMSt2YY
    3WWGDRIe6GMSt2YY
    YBt5XBFnBXT2OHEV

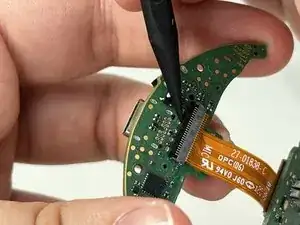

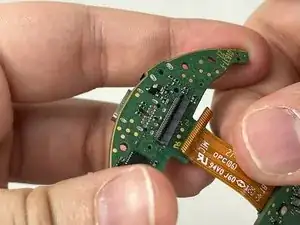

    • Remove the two attached circuit boards from the headphone housing.

    • De-solder Bluetooth Module from control board to replace.

Conclusion

To reassemble your device, follow these instructions in reverse order.
