LG TP 1100 Keypad Replacement

Written By: Johnny Inlow
  • Comments: 0
LG TP 1100 Keypad Replacement

Difficulty

Moderate

Steps

11

Time Required

No estimate

Introduction

This guide will show you how to replace the keypad of your LG TP 1100 phone.

  1. lfoK24emRNPu4woR

    • Unscrew Antenna

  2. jarXBfUgNg6p1HNT

    • Pull Antenna from socket

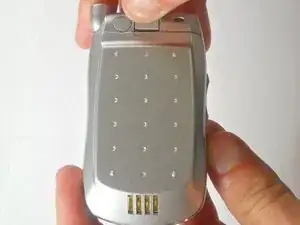

  3. lEcINxcYuWuwDRRl

    • Turn Phone over

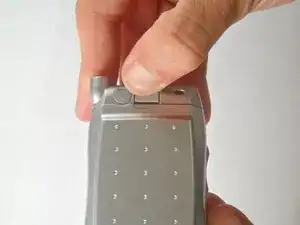

  4. jK2a1FjqZw3WNJTJ

    • Pull up tab on top

  5. fZJP1GvucUsCx1VO

    • Remove the battery

  6. DGNm2LHyyaAaYZ5O

    • Unscrew the four screws behind the battery

  7. 5orYBL1bvAu3bmk3
    5orYBL1bvAu3bmk3
    JVGG2pKDHfBDrKYY

    • Pull off back cover

    • Do not separate the covers

    • Do not rip the tape connecting the two covers

  8. ry2dUwaVEL6uxw6f

    • Remove back cover

  9. ssp2Pqx6pVcWxKqy
    ssp2Pqx6pVcWxKqy
    UVRMNA1sSijVIR2Y

    • Pry the circuit board from front cover

    • Do not let number pad fall out

  10. XnCXskEEWWKlHcer

    • Now remove the number pad

  11. 3fMBHNWkmrHiofqE

    • Remove the navigation keys

Conclusion

To reassemble your device, follow these instructions in reverse order.
