Introduction

To make any repairs on the Lenovo V15-ADA device, you must take the Back Panel Assembly off first. Below are the steps to remove the Back Panel Assembly.

  1. Y1nuV61TsLdGZVS5
    • Remove the 10 marked screws using a Phillips #1 screwdriver bit.

    • M2.5 × 7 mm, Phillips-head (6) (RED circles)

    • M2.5 × 4 mm, Phillips-head (4) (ORANGE circles)

  2. ARnQtuQUeghUyewp
    • Remove the 10 screws from the back plate.

  3. raWXMOxLK4ORVVmw
    • After all 10 screws have been removed, insert a spudger between the bottom plate and the housing and slide across.

    • Repeat for all 4 sides until loose.

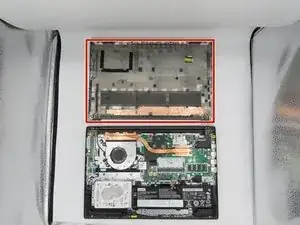

  4. BtoqD2qIMe4Mpitf
    • Pop off the back plate and set aside.

Conclusion

To reassemble your device, follow these instructions in reverse order.
