Logitech G27 C-Clamp Replacement

Written By: Daniel Louis
  • Comments: 29
Logitech G27 C-Clamp Replacement

Difficulty

Easy

Steps

16

Time Required

30 minutes

Introduction

If the C-Clamps on your Logitech G27 break, you will need to replace them before using the steering wheel again. This is a little bit of a pain to do, because the C-Clamps are fully inside the device case. To replace them, you will just need to remove a few screws.

  1. JFe3hZpcNcMwfMMY

    • Remove the six gray 25mm hex screws with a 4mm allen wrench.

    • Watch out when you lift the wheel up, as there are fragile wires connected to the bottom side.

    • Carefully lift up the wheel, but do not disconnect it from the rest of the device.

    Fijar primero el volante en la mesa para evitar desperfectos.

    Alpc360 -

  2. wnfiUv2VBuSB31AK

    • Carefully lift the wheel off of the hub, exposing the 2 shifter paddle wires and PCB board.

    Apoyar el volante con las piernas y sacar los tornillos.

    Alpc360 -

  3. NZhmVBB6Bqh3Wu2P

    • Remove the two 7.5 mm silver screws holding the green PCB board in the wheel with a Phillips #1 screwdriver.

  4. foUkt5y4AwJkc2ET

    • Carefully remove the PCB board from the wheel hub.

  5. Qtmlc6TkePtrVyam

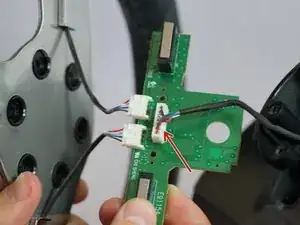

    • Carefully pinch and unplug the large 7-pin connector under the PCB board.

    • Be careful when unplugging this adapter, try not to pull on the wires to avoid damaging them. Instead, wiggle around the plastic connector while pulling on it to loosen it.

    These screws refused to go all the way back in for me, and one of them stripped completely. If this happens to you, you can get replacement screws that are shorter here - https://www.amazon.com/gp/product/B01MFA...

    This works for the G27, not sure about the G25 or any other wheels.

    Obviously the screws being shorter means the wheel isn't as strongly attached to the base in this direction, so if you have to do this remember not to put unnecessary stress on these screws by pulling the wheel straight off the base.

    SouthernPotato -

    bro i need new long cable i think and that connector or just replace the whole thing .. i put new grease, screw it more tight by the encoder so it woulnt go to the left .. wheel works verry nice tho all my buttons and shifter pedals wont work now tho the lights works dont know what to do now.. and now i kinda regreat opening it.. my wheel run so good now just these buttons are off not working at all and it kinda screws up midle of the game..

    Alexander -

    @alexdinpoik I’ve had the same problem when the 7 pin connectors blue and green cables broke off. First, only the blue one was broken which only took the led indicators gradual increase but all buttons were working then when i tried to plug in back, the green one broke off leading to none of the buttons working but the led indicators just working. Now i’ll try to fix it with iron soldering.

    Okan Akgül -

    okan can u pls share a video of you doing it? so i can do the “copy paste” hahah where can i buy cables and stuff i need for that? whats the name of these white connectors ? im new to this but share me a link to buy. i rather just try to fix it then buy a new wheel since its a great wheel compare to g29 that has bad software and the other wheels are to expensive. g27 cant be found in stores anymore neither and if im gonna buy one it has to be new haha hopefully u can share some knowlage thanks!

    Alexander -

    Where i can Buy the 7 pin cable for Main board please

    Ojilve jose -

    Hey guys!

    i broke the 7 pin cable anyone know where can is buy it? Thanks

    Richard Hajdu -

  6. FiRu5bFZLB5YBEuV

    • You can now fully remove the wheel from the hub. Set it aside until you put the wheel back together.

    • Remove the innermost three 37.5mm silver screws with a Phillips #2 screwdriver.

    • Remove the wheel hub and push the connector through the center of the hub.

  7. hRAYY1mMrAVKZJFD

    • The wheel hub can now be set aside and flip over the steering wheel housing to reveal the under side.

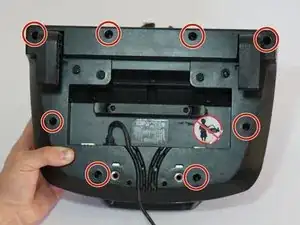

    • Remove the eight 15.9mm silver surrounding screws underneath the wheel housing with a Phillips #1 screwdriver.

  8. UidVkwPtGC2eJLMK

    • Rotate the housing back over and remove the top half of the housing revealing the majority of the components of the wheel.

    • The housing cover can be set aside until you put the wheel back together.

    need two new black screes abouve the pcb board.. lost them need to know the size since the screws i replace it with was not exact..

    Alexander -

    Loosen the desk clamps before removing the housing, otherwise you risk breaking something. The housing should come off without having to use any force whatsoever.

    Oula Kuuva -

  9. AmPXsBqhnwifCPIb

    • Remove the four 7.3mm silver screws attaching the green PCB board to the motor housing with a Phillips #2 screwdriver.

    I’d do steps 9 and 10 in reverse order, the connectors are much easier to unplug while the board is secured in place.

    Oula Kuuva -

    For removing C-Clamps steps 9-13 are unnecessary.

    Etam -

  10. CyrTKTeAZ5fqJSPi

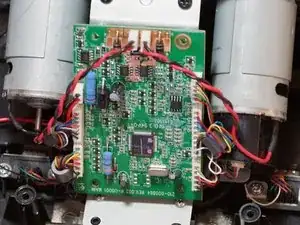

    • Unplug the three plastic connectors on the left side of the PCB board.

    • Unplug the two plastic connectors on the top of the PCB board.

    • Unplug the three plastic connectors on the right side of the PCB board.

    • Pulling the plastic connectors requires a lot of force, but be careful and don't pull directly on the wires. Try to wedge or push the male side of the connector out.

    • If you need some extra leverage when removing these connectors, try using a plastic opening tool to pry off the connectors.

    • Removing these connectors allows easier access to the four screws attaching the PCB board mount to the motor housing.

    Some of the connectors have locks on them, I would recommend this as a two person job.

    Reuben Andrews -

    I didn't take them off :)

    Evaristo Rivieccio Vega -

    I messed up and broke the cables of the 5 Pin Connector on the right. Can anyone tell me what it’s called so I can buy replacement? The Rest of the cable is stuck in there so I can’t re-use it sadly.

    Felix Weschke -

  11. a4odqtXHQyqDcUbg

    • Remove the PCB board after all of the plastic connectors are disconnected.

    • You can now set it aside.

  12. Hvf5BHMD5r3wZDec

    • Remove the two 12.3mm upper black screws with a Phillips #2 screwdriver.

    • Remove the two 15.5mm bottom silver screws with a Phillips #1 screwdriver.

  13. q4XLbMAPFVVY2XSU
    q4XLbMAPFVVY2XSU
    EXbOLKj6XwlTA2Zp

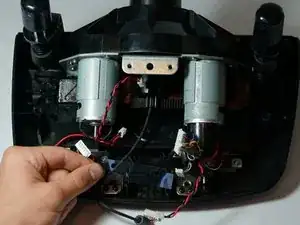

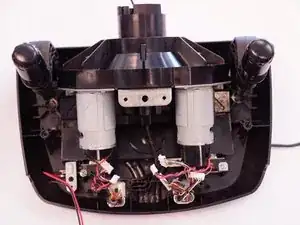

    • Remove the PCB board mount and remove the clear plastic piece underneath.

    • Set them aside until you reassemble the wheel.

  14. NOHYRvEWYiC6Vs5U

    • Unscrew the piece holding the C-Clamp in place with your hand.

  15. H6tlDUHSSZ4Ly1tZ
    H6tlDUHSSZ4Ly1tZ
    IFbhvgqoZKs3VoYX

    • Push the remaining nob forward and then inward through the slot.

  16. bfFxNVxvsH2C5BKi
    bfFxNVxvsH2C5BKi
    Nplu2CVG4eL1MZgs

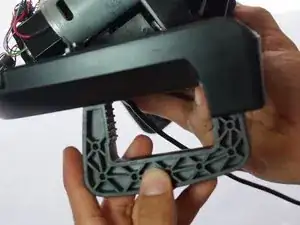

    • The C-Clamp can now be easily pulled out of the bottom of the device.

Conclusion

To reassemble your device, follow these instructions in reverse order.
