Logitech G27 Shifter Potentiometer Replacement

Written By: Nicholas Gholdoian

Comments: 26

Logitech G27 Shifter Potentiometer Replacement

Difficulty

Moderate

Steps

Time Required

45 minutes

Introduction

If your Logitech G27's shifter stops responding, you may need to replace the potentiometer inside it. The potentiometer is the electrical component that keeps track of which gear the shifter is on. The replacement isn't too difficult, you mostly just have to unscrew lots of screws.

Tools

Step 1

Remove the six 9.0mm allen screws with a 2.5mm hex key.

Step 2

Either use the plastic opening tools or a flat screwdriver to pry and pop off the cap on the shifter.

Step 3

Remove the black 12.3mm screw inside the shifter with a Phillips #1 screwdriver.
After, remove the shifter top and shifter boot cover by pulling straight up.
Remove the three 15.6mm screws with a Phillips #1 screwdriver.

And remove the three 15.6mm screws with a Phillips #1 screwdriver.

Marco van 't Wout - 30/04/17

seconded, please add the 3 “missing” screws into the guide. Almost started to try and pry the cover off with prying tools.

Ruben Kristensen - 11/12/17

Step 4

Flip the device over and four 15.6mm screws with a Phillips #1 screwdriver.
Pull the lower clamp up and out of the shifter assembly.

The screws on the far left and right are too tight! What do I do?

Ethan Fleming - 03/04/17

This step isn't necessary.

Adam Clarke - 11/05/17

Step 5

Remove the two 10mmm hex nuts with a 10mm socket and a ratchet.
Next, unscrew the clamps by holding the lower portion of the shifter and unscrewing the top part.
Also remove the nut on the screw if it wasn't removed with the lower clamp.

Step 6

Remove the eight black 11.9mm screws from the bottom housing with a Phillips #1 screwdriver.

Step 7

Carefully lift the top half of the housing from the bottom.

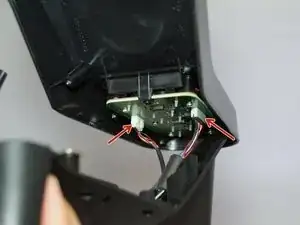

Watch out, there are 2 wires attached to the PCB board. Be careful not to damage these in any way.

I was completely unable to seperate the top half from the bottom, and that’s with my prying at it with screwdrivers and flatheads for about 20 minutes. There are absolutely zero screws visible from the bottom so i don’t know what that’s all about. Any thoughts? other than the fact that the plastic is disfigured forever.

Venstoma - 19/03/19

After you remove the shift knob and the leather, three more screw holes become visible. You need to remove those as well (which this guide conveniently doesn’t mention).

janhendrikman - 07/07/19

Step 8

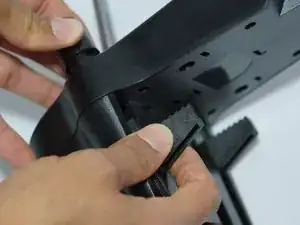

Carefully remove the two plastic connectors with a plastic opening tool or your hands.

Step 9

Go to the lower portion of the shifter; remove two black screws and four silver 15.9mm screws with a Phillips #1 screwdriver.

Step 10

There is grease covering the whole shifting assembly so it will get messy when removing.
Squeeze the two metal plates together and slowly pull up. The assembly is spring loaded and will fall apart if it is not squeezed.

Step 11

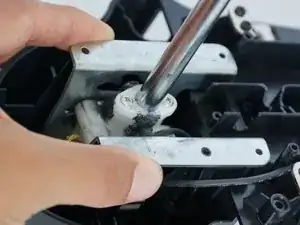

Remove the shifter assembly and place it on a flat surface. Then remove the metal plate with the spring and ball bearing attached.
This is the hardest part of reassembling. Make sure to properly place the spring inside of the inner housing and the ball bearing on top. Place the other metal piece on top of it.

Step 12

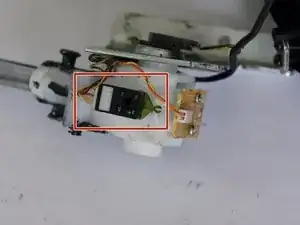

You will now have access to the two potentiometers on the sides of the assembly. Make sure they are properly connected and if need be, replace them by removing.

Anyone knows what type of potentiometers these are? I haven't been able to source them for years now.

Kostas Theo - 26/09/20

The light brown circuitboard is for the down spdt switch to detect reverse

Matthew Adler -

Where do you get replacement potentiometers ? , Iv not taken mine apart to look yet , but reverse no longer works on my shifter

bertovzki@hotmail.co.nz -

Weet iemand waar ik de achter draadjes voor de achteruit kan vinden. Wil er een handrem bij solderen.

Zal dat mogelijk zijn denken jullie

Leroy l -

Conclusion

To reassemble your device, follow these instructions in reverse order.
