Logitech G733 Battery Replacement

Written By: Antonio Jensen

Comments: 5

Difficulty

Moderate

Steps

Time Required

20 - 30 minutes

Introduction

If your battery will no longer accept a charge and you need to replace the battery, you can do so with this guide. For this guide, you will need a T4 Torx screwdriver and a spudger. This is a popular repair and it is very easy to do!

Tools

Parts

Logi 533-000181

Step 1

Before you begin, discharge the headset battery below 25%. A charged lithium-ion battery can catch fire and/or explode if accidentally punctured.
Gently pull the right ear pad off, starting from the top.
Slide your finger around the edges until it releases completely.
Remove the ear pad.

Step 2

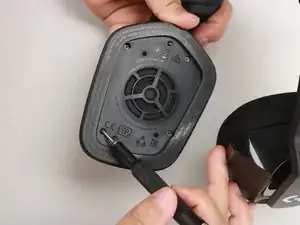

Remove the four screws that secure the speaker housing using a Phillips screwdriver.
Place these screws on the magnetic pad so you don't lose them.

Step 3

Lift off the speaker housing with care not to strain the connected cable.
Gently wiggle the white battery cable connector side to side while pulling it out to disconnect the battery.
Do not pull on the wires.

Step 4

Take care not to puncture, twist, or bend the battery as you pry.

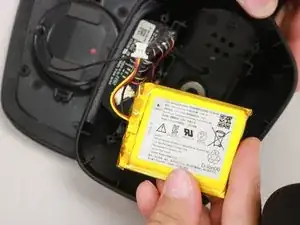

Remove the battery, using a spudger to gently pry it up if necessary.
Reapply adhesive, put the new battery in place, and plug it in.

Hey, thanx for the guide, but my g733 headset have PH00 screws. Just in case

Ralf Kitzer -

Conclusion

To reassemble your device, please follow these instructions in reverse order.

Author

Antonio Jensen

Member since: 14/02/23

676 Reputation

4 comments

This guide is great, but mentioning what kind of battery to purchase for the headset would make it infinitely better...

Darbii Rue -

I fully agree

Gabriel Nunes -

Its a 1.5 phillips on the right side. On the left side its a T5 screw not a T4. And you can easily remove the battery without a spudger. It came out with my bare hands.

Heather Dasher -

took 2 mins to find battery info ..........................

Logi 533-000181

Stephen Burrows -
