Logitech G920 Driving Force XYAB Buttons Replacement

Written By: Tristyn Dolan
  • Comments: 0
Logitech G920 Driving Force XYAB Buttons Replacement

Difficulty

Moderate

Steps

6

Time Required

15 - 25 minutes

Introduction

This guide will be used to aid you in replacing the Logitech G920 Driving Force XYAB buttons. The steering wheel buttons control the inputs when pressing down on them. If your device is having problems related to the buttons not responding, take a look at the troubleshooting guide before continuing with this guide. The problems related to buttons could also be a result of a faulty motherboard. However, if you know it's a problem with the buttons themselves, continue with this replacement guide. Unplug all parts of the device from any outlets before you start.

  1. xuySMUKWmsKaOcrr

    • Use the Phillips #0 screwdriver to remove the five 9.5 mm external screws.

    • Only three of the five screws are visible from each side of the wheel due to the center unit.

  2. dgPXRSKOgcOL3SKy

    • Using the Phillips #0 screwdriver, remove the 5 mm screws holding the bumpers in place.

  3. HHIhhqLACVJfxq4q
    HHIhhqLACVJfxq4q
    GuxyKD1vCCCJHnfN

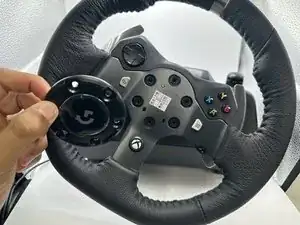

    • Using the TR25 Torx Security Screwdriver, remove the six 23.8 mm screws holding the face plate together.

    • Remove the face plate from the steering wheel.

  4. REVdYiB4jh5IxEp3
    REVdYiB4jh5IxEp3
    xBC2j1tAMBlUGOrU

    • Remove the wheel from the main steering wheel console.

    • Ensure this is done carefully as to not damage the connection wire.

  5. oW1rZCDNlUSCJgQR
    oW1rZCDNlUSCJgQR
    r4QyKoPSveOkv3Qe

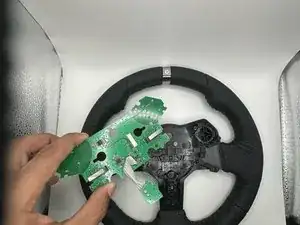

    • Remove the eight 7.5 mm screws holding the steering wheel motherboard in place using a Phillips #0 screwdriver.

    • Remove the steering wheel motherboard.

  6. ox6ZCY2bx6yxaArx

    • Remove the XYAB buttons from the back of the steering wheel.

Conclusion

To reassemble your device, follow these instructions in reverse order.
