Introduction

If your joysticks are cracked, old, or broken, you may want to replace them. Joysticks are key for any game you might play. Follow this guide to replace your joysticks. The joystick are used to move around in games on pc.

No special tools or skills are required.

  1. 5X4mDBDlm4aCpX1U
    5X4mDBDlm4aCpX1U
    ykdOIWy5uogN3YJL
    • Use a Phillips #1 screwdriver to remove all seven 3 mm screws that secure the rear case.

  2. ENHWNNOBAUMSMUUG
    ENHWNNOBAUMSMUUG
    VZVjqsEXtmDEFLfE
    • Press along the seams of the controller and gently pull the front and rear case apart.

    • If necessary, use an opening tool to help pry the front and rear case apart.

    • Make sure to open the controller with the front facing down so that the buttons do not fall out.

  3. pPS1JtQ3XEj1P4sw
    • Fully separate the front and rear case.

    • There are two side panels on the controller that come apart as well. When putting them back together, they slot into place on the sides of the controller.

  4. QjUVbhLxkYDils2K
    QjUVbhLxkYDils2K
    IEy3vCT3jw543eNG

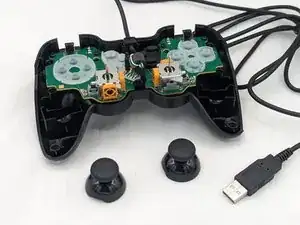

    • Pull the joystick covers straight up and off the modules.

Conclusion

You're finished! To reassemble your device, follow these instructions in reverse order.
