Introduction

In this guide we have a MSI Force GC30 V2, the model number/name is MSI Force GC30 V2 and we are replacing the motherboard. The motherboard is the main component of the controller with all the various inputs being fed to the motherboard. A motherboard may become damaged with exposure to liquid or if the controller is repeatedly dropped. Some symptoms of a damaged motherboard are random shutdowns of the controller, strange noises, or a burning smell.

  1. bAKaub1KdqjWl5PY
    • Puncture the sticker where indicated using a screwdriver.

    • Remove the 9.1 mm-long Phillips #0 screw.

    • Remove the remaining six 9.2 mm-long Phillips #0 screws with a Philips #0 screwdriver.

  2. fhoVFJG3aeZL2tna
    fhoVFJG3aeZL2tna
    WbpEPII4kAYPUIBl
    WlFJUGJBpdEGFloI
    • Insert an opening pick in the gap between the front and rear case.

    • Slide the pick around the perimeter of the controller while prying.

    • Once the rear case is released, gently pull it away from the front case.

  3. HHsUAIWCaAdX2fem
    • Use tweezers to grip the white battery connector.

    • Pull the battery connector directly out of its port.

    • Do not pull on the wires.

  4. r1VCg13eSKEMdx3E
    • The battery is secured to the motherboard with a mild adhesive. If necessary, apply a small amount of high-concentration isopropyl alcohol beneath the battery to loosen the adhesive.

    • Pry carefully around the battery until it fully releases.

    • Remove the battery.

  5. vWTX3WYEK2PF1aeO
    vWTX3WYEK2PF1aeO
    eBNlG5yfLpBcDAZO
    S1aIqfMrGukWwPlC
    • Use blunt tweezers to disconnect both of the vibration motor connectors from the motherboard.

    • Grip the white connectors, not the wires.

    • Carefully remove both the right and left vibration motors from their housing.

  6. f3DElHYLR4OL4Nm5
    f3DElHYLR4OL4Nm5
    LPZGgstILtQbSlb1
    uVxF1oJGIVBFwoee

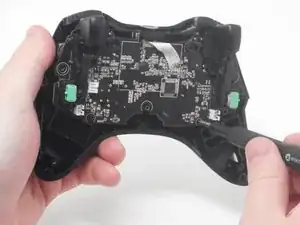

    • Remove the two 7 mm-long screws with a Phillips #0 screwdriver.

    • Carefully lift the motherboard out of the chassis and remove it.

  7. 2JSmPxMXdYMy6p14
    2JSmPxMXdYMy6p14
    P4PJmWDIvDNKYty5
    Gs3DDqegBGnZJpkp

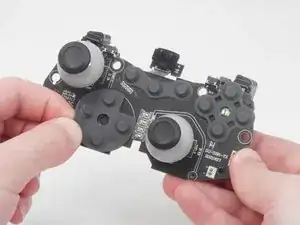

    • Remove the button membranes off of the motherboard.

    • Any other components can be removed as needed.

Conclusion

To reassemble your device, follow these instructions in reverse order.
