Introduction

If your MSI GS66 Stealth laptop (model 11UE-007) is having problems with the overall cooling system and it is not the cooling fan, the thermal paste might need to be replaced.

Thermal paste is used to transfer heat away from the CPU and the cooling system. Loss of effectiveness from this part can result in the laptop heating up to dangerous levels that put other components of the laptop at risk.

This part can dry up over time and will need replacement at some point. This guide has the necessary steps to fully replace the thermal paste and return the laptop to peak efficiency.

  1. JX2DRJCNGJkfbnOT

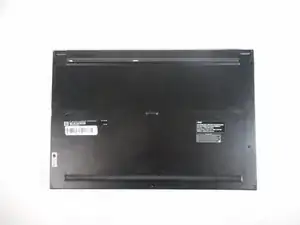

    • Orient your laptop so that the bottom is facing up and the hinge is away from yourself.

    • Make sure to unplug device for any outlet.

  2. N5EBPiA4E3v65RYK
    N5EBPiA4E3v65RYK
    nnkKYoTtpjVBBV2F
    WRgX4A6MFWRVOAPV

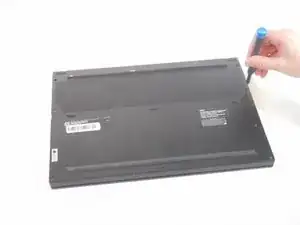

    • Identify the nine screws around the perimeter. One screw will be under the factory seal sticker.

    • Remove eight 10mm Phillips J1 screws.

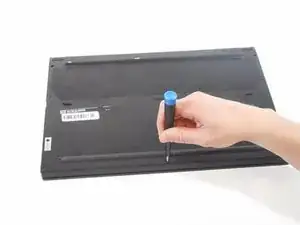

    • Remove one 7mm Philips J1 screw from the center bottom of backplate.

  3. DgBfcMfJ1OmNFRhP
    DgBfcMfJ1OmNFRhP
    ZvCnN5CYPApZMfIw
    cnANqHpkV2I3qoLS
    • Use the tip of the blue plastic opening tool to slip between the backplate and the body of the laptop at the hinge side.

    • Wiggle the blue plastic opening tool as you slide it around the perimeter of the backplate to separate is from the body of the laptop.

  4. kOQ1VQ5br1uwqgYp
    kOQ1VQ5br1uwqgYp
    cdylITUX6Ugfu3KE
    • Disconnect the wires from the cooling fan.

  5. nXXdOVOSpRGRGu2K
    nXXdOVOSpRGRGu2K
    rkGGNQfS6x2V3u3y

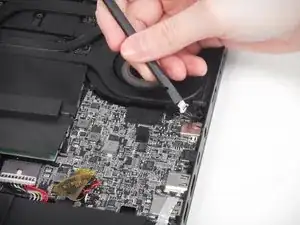

    • Disconnect the two wires from the Wi-Fi card.

  6. HOsHNAi2UvSYSx1G
    HOsHNAi2UvSYSx1G
    BDlrBCIUoIQYJeDn
    ZhgJmONfOOM6C14O
    • Remove the nine 6 mm screws.

  7. VBNQFdKNHBiEmVfD
    VBNQFdKNHBiEmVfD
    obSiKSVG4HH4w5Kq
    • Remove the tape connecting the fans to the fan housing.

  8. ALuswAtDLVUf4JZ3

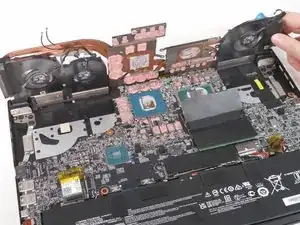

    • Lift up the cooling unit like it is hinged at the back.

    • Replace thermal paste.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Alex Robinson

Member since: 06/09/23

1057 Reputation

2 comments

When putting the heatsink back on, do we only need to reapply cpu thermal paste, or do we have to replace the pink stuff? If so, what is the pink stuff, and where can I get it?

Alexandru -

If you only have issues with thermals on your cpu then I would just replace the gray thermal paste directly on the cpu. The “pink stuff” is also thermal paste for the other components. It would normally have thermal pads but there must not have been enough room for them in the design.

Scott Brooks -
