Macs wireless keyboard for PS4 controller Disassembly

Written By: HoPo-_
  • Comments: 0
Macs wireless keyboard for PS4 controller Disassembly

Difficulty

Easy

Steps

9

Time Required

2 - 10 minutes

Introduction

In this guide I will be going through how to disassemble a Playstation 4 wireless keyboard.

  1. FL4kNMyOGrYYPg2J
    FL4kNMyOGrYYPg2J
    Yk2UdsGobirVfh5f

    • Turn keyboard upside down.

    • Unscrew all the four 7 mm Phillips J1 screws on the bottom.

  2. MPZ6i1DycUBdBOwC
    MPZ6i1DycUBdBOwC
    u2Uc6OCIfa5OhJ3b

    • Slide an opening pick between the upper and lower part of the frame from the corner of the keyboard.

    • Slide the pick all the way around the keyboard.

    • As the frames seperate, it is recommended to keep the controller upside down, to prevent the insides accidentally falling out and potentially damaging the keyboard.

  3. cKYkqm62qPLflGlm
    cKYkqm62qPLflGlm
    YGWdVbeViLrglXvw

    • Carefully remove the button caps.

  4. yNUuHLmYhTsHgbbk

    • Move the battery out of the way.

    • The battery has been secured with adhesive tape, so slight force may have to be used.

    • Be careful not to pull too much on the battery, as the batterys cables are soldered on the board, and the solder may come off if pulled too much.

  5. LSZK1uxXOTS1QKLV

    • Move the 3,5 mm jack connector out of the way.

    • Use the same caution as for the battery cables. The jack cables are soldered on the board the same way as the battery cables are.

  6. kvRp5KEjiJHysuSi
    kvRp5KEjiJHysuSi
    ZINOKmZUXOR2v3Ay

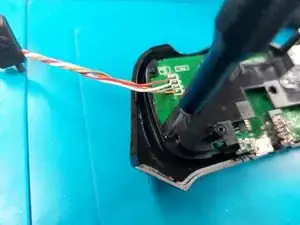

    • Unscrew the last four 5 mm screws from the frame, with a Phillips #000 size bit.

  7. TktAsURTaAUJjfAV
    TktAsURTaAUJjfAV
    RmcORTKbhOBYbIai

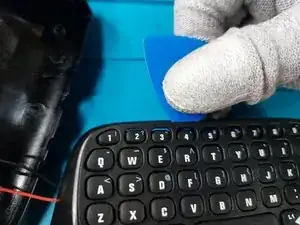

    • Flip the keyboard around, and slide an opening pick between the frame and the actual keyboard.

    • Slide the pick alongside the edge of the frame.

  8. PIRss1tKuMkADUXX
    PIRss1tKuMkADUXX
    N6rDRWN6dNGjFqGA

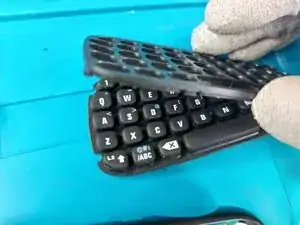

    • The keyboard buttons come off just by lifting.

  9. BTWihKnTuDKtA1RF
    BTWihKnTuDKtA1RF
    qGlyEmtqR2wneJFJ

    • The motherboard comes off by lifting it from it's socket.

    • The motherboard cannot be completely pulled out unless the component from the lower frame part is soldered off.

Conclusion

To reassemble the keyboard, follow these instructions in reverse order.
