Marshall Stanmore II Rear Panel Replacement

Written By: Rebecca Arellano
  • Comments: 0
Marshall Stanmore II Rear Panel Replacement

Difficulty

Easy

Steps

3

Time Required

10 minutes

Introduction

This prerequisite guide is intended to facilitate the replacement of any internal components of the Marshall Stanmore II Bluetooth Speaker. It may also be used to check inside and clean out any water or debris.

Before using this guide, ensure that all steps have been taken on the Stanmore II Troubleshooting page in case the issue can be solved without disassembling the device.

Before removing the panel, make sure that power is removed from the speaker. This includes turning off the speaker and unplugging the power cord from the back of the device and the wall outlet.

  1. AKWIA1nG1XUe6bJy
    AKWIA1nG1XUe6bJy
    12XgYFFMsALdh2P4

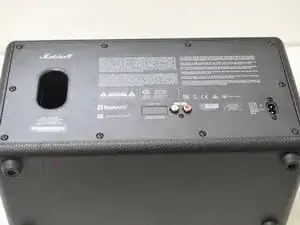

    • Turn off the device and unplug the cable from the wall and the speaker.

    • Lay the speaker with the back panel facing up on a flat, stable work surface.

  2. K1pqyIQbohWadoMI
    K1pqyIQbohWadoMI
    2prEn3HXlrJ6Ry2v

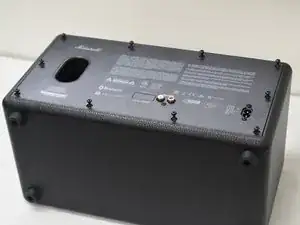

    • Use a Phillips #2 screwdriver to remove the ten 20.5 mm screws that secure the rear panel to the chassis.

  3. vGAAAkbQexnlE2Ab
    vGAAAkbQexnlE2Ab
    IfC1CIotronJCclW

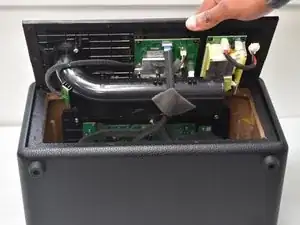

    • Carefully lift the rear panel and let it rest on an object, like a stack of books, to avoid straining the cables.

    • Do not attempt to fully remove the panel, as this will damage the connections inside.

Conclusion

To reassemble your device, follow these instructions in reverse order.
