Microsoft Surface Headphones Speaker Replacement

Written By: Ethan Haight
  • Comments: 7
Microsoft Surface Headphones Speaker Replacement

Difficulty

Moderate

Steps

5

Time Required

15 - 30 minutes

Introduction

The Microsoft Surface Headphones speaker allows the user to receive audio from the device and hear what one is playing through their phone/computer.

Failing audio quality is the most common indicator of faulty speakers, such as the audio sounding distorted, or cutting in and out. If only one side of the headphones produces sound, it is a clear indicator that specifically the speaker is what is messed up; if both are silent, it is more likely to be another component like the battery.

  1. tGvJACWBAOVUdf1Q

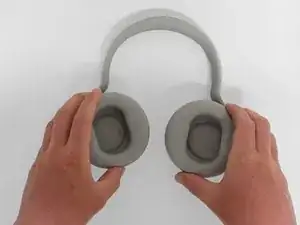

    • Firmly grasp the ear cushions, and rotate them counterclockwise about 45 degrees, or until you hear a "click."

    • Be careful not to use excessive force during rotation.

  2. XrRH1jCCEcSQQnXX

    • Lift the ear cushions off the speaker housings.

  3. WVUHjOwKysWR3HNL
    WVUHjOwKysWR3HNL
    v2St1vCRpP6DQPwr

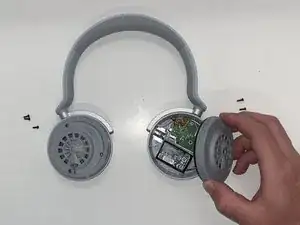

    • Remove the six 2.6mm screws with a Phillips #00 screwdriver, and gently lift the speaker housings away.

    • If only one of the speakers is malfunctioning, only remove the screws on the affected side, and leave the functional speaker intact.

  4. efMFrwC1chf5VfWr
    efMFrwC1chf5VfWr
    AHdbJYfMWS2WMrcv

    • Gently pry the speaker housing away from the chassis with a spudger.

    Nescito el speaker R pliss

    Wildeman Osorio -

  5. xPaNYJo1kjCSk4nS

    • Desolder the speaker's motherboard connections.

    • Desoldering and soldering are delicate procedures, and there is a potential for device damage.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Author

Ethan Haight

Member since: 08/02/22

843 Reputation

6 comments

How can I get my turtle Beach to pair

Miguel Garcia -

How do I remove the speaker from the plastic housing? Is it glued in place? I desoldered the speaker unit and now I am trying to take out speaker from its housing.

Stephen Hyland -

I would also like to know this! replacing the speaker requires the plastic housing to be opened. I tried heating the housing with a hair dryer but no result....

fixer8888 -

I cut it in half down the side. Very long a tedious process. also makes it hard to get a tight seal for reassembly but with a little more patience than I had and a clamp to glue the pieces together could probably get a nice finish. I have a gap which causes a little weirdness for the ANC especially with wind.

joshray -

Where do you get replacement speaker

marilyn -

For the Surface 2 it's T6H screws, otherwise this is correct to dismantle and put them together again.

(Unfortunately I could not find any problem I could solve. My left earpiece remains silent)

Anders Hedberg -
